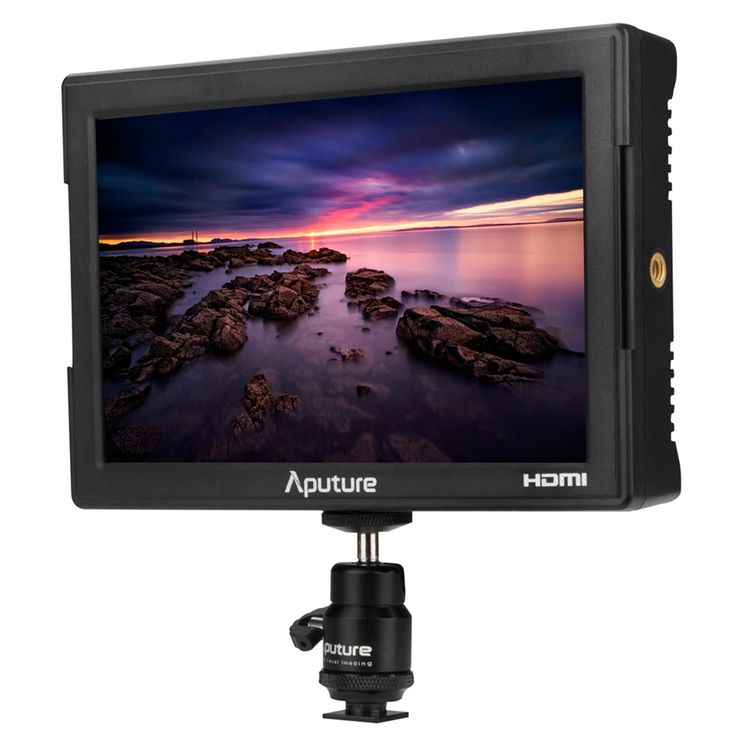

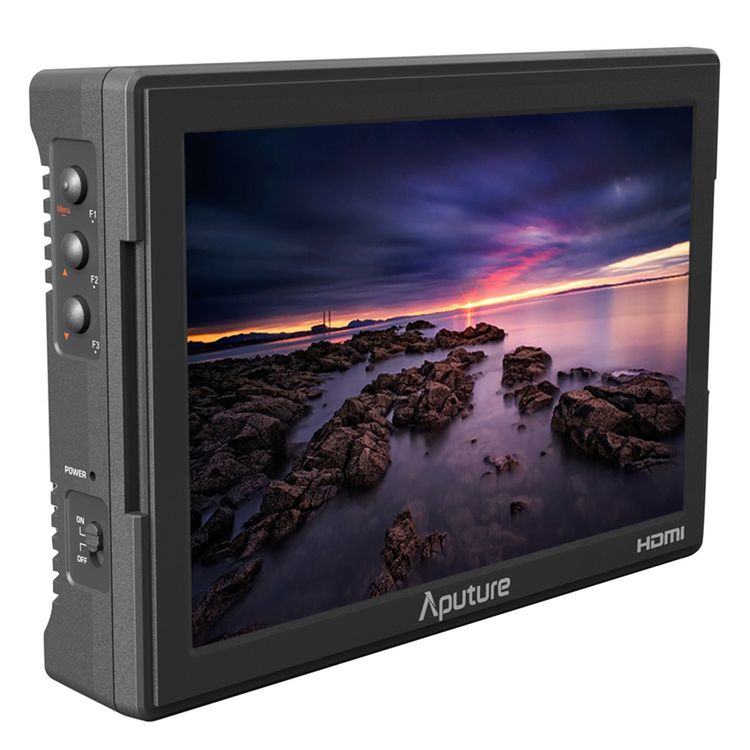

Aputure VS-5 7 inch FineHD Screen 160 Degrees Viewing Angle Video Recorder SDI Monitor with Sun Shade, Support HDMI / HD-SDI Input


R9833

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

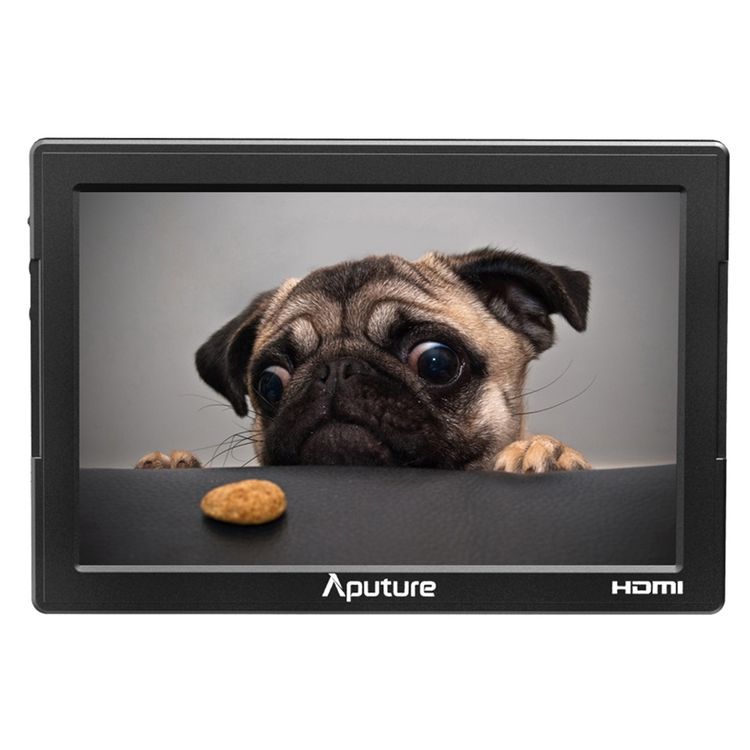

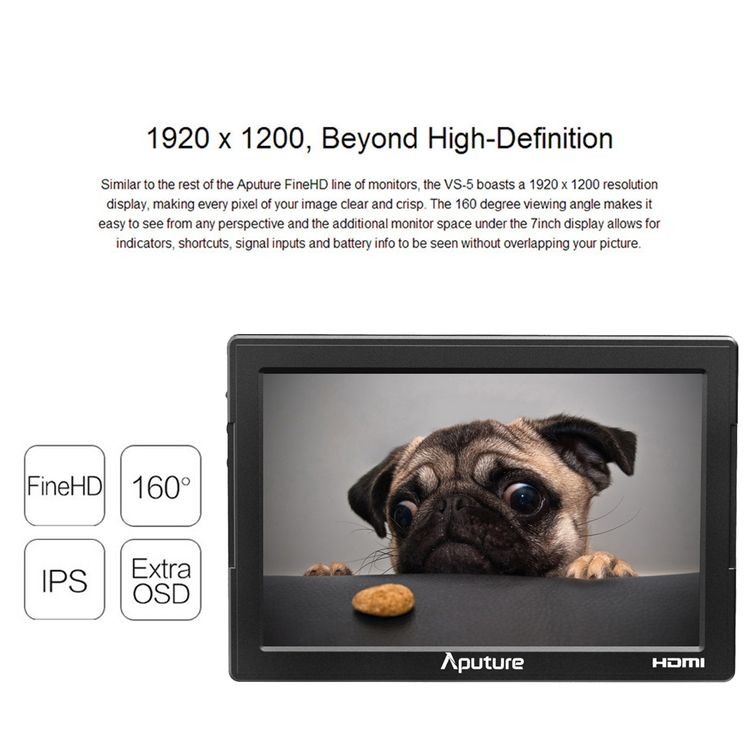

1. 7 inch FineHD screen, 1920 x 1200 high resolution ratio, 160 degrees viewing angle.

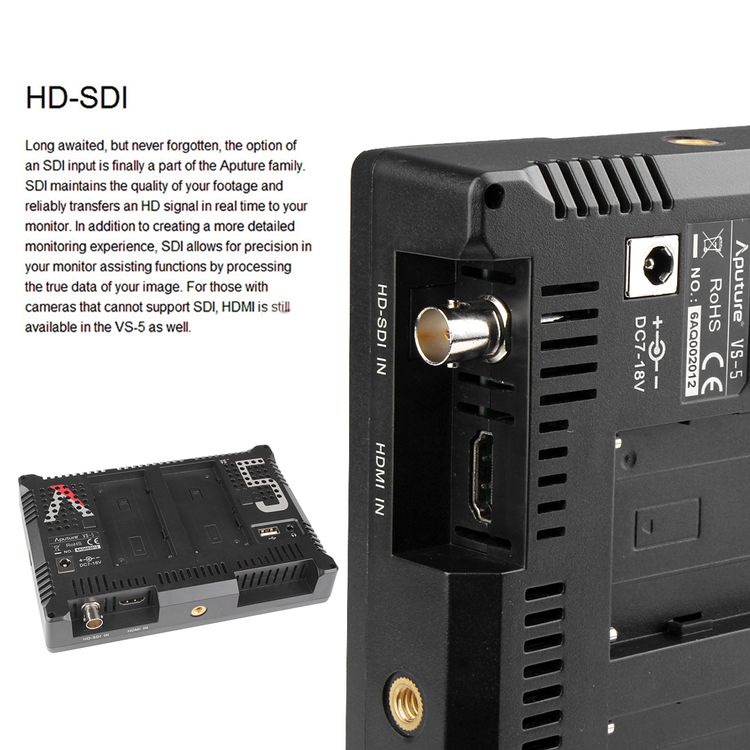

2. Support HD-SDI and HDMI signal input.

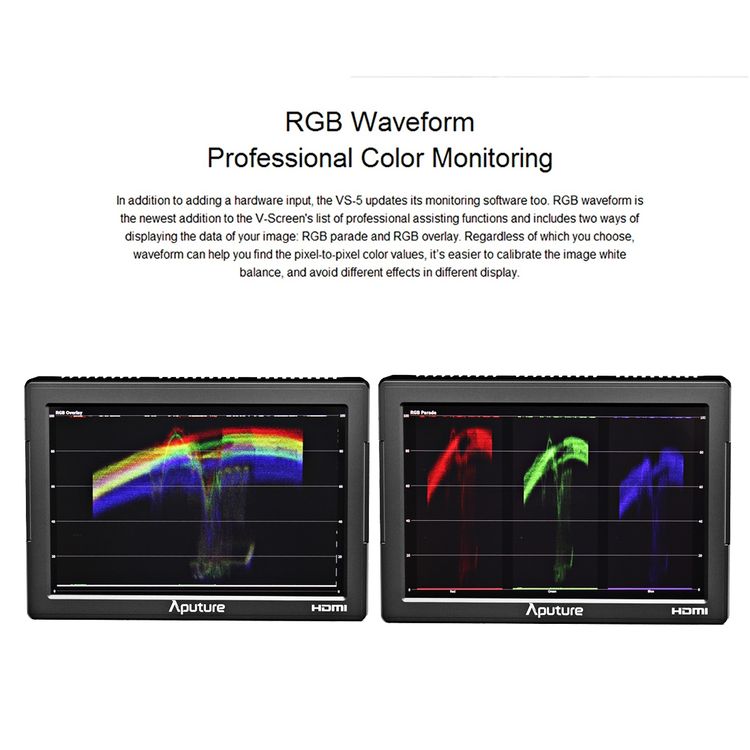

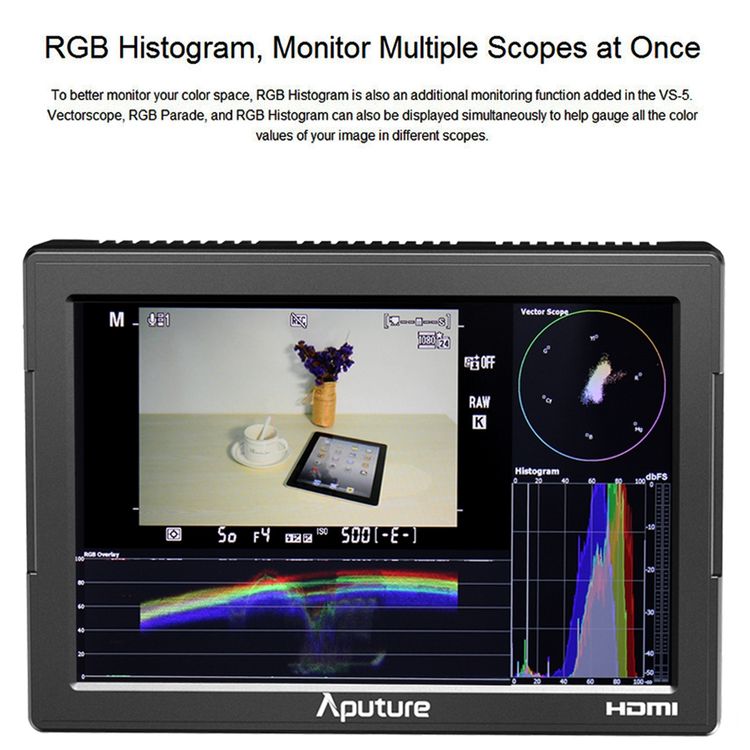

3. Oscillogram and vectorgraph are added, professional SDI monitor.

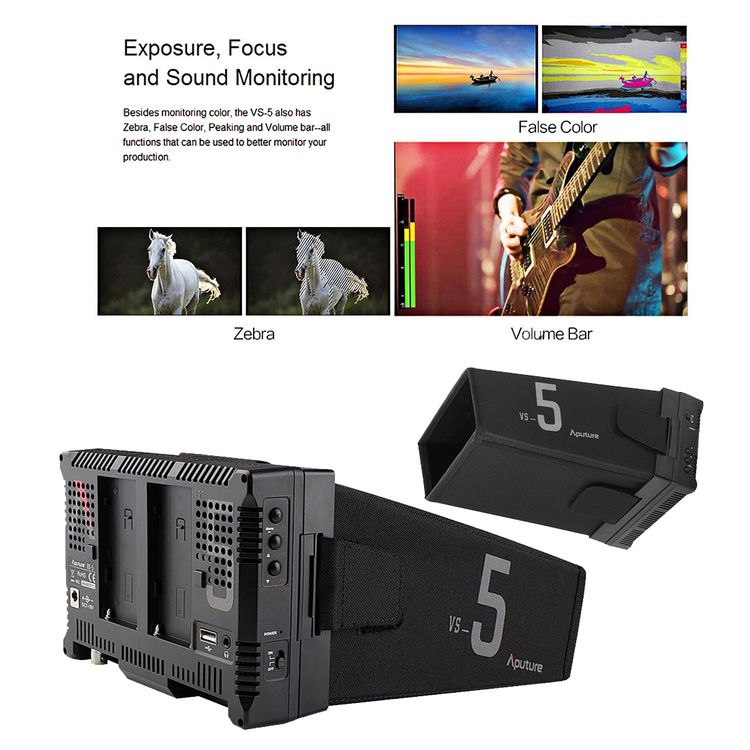

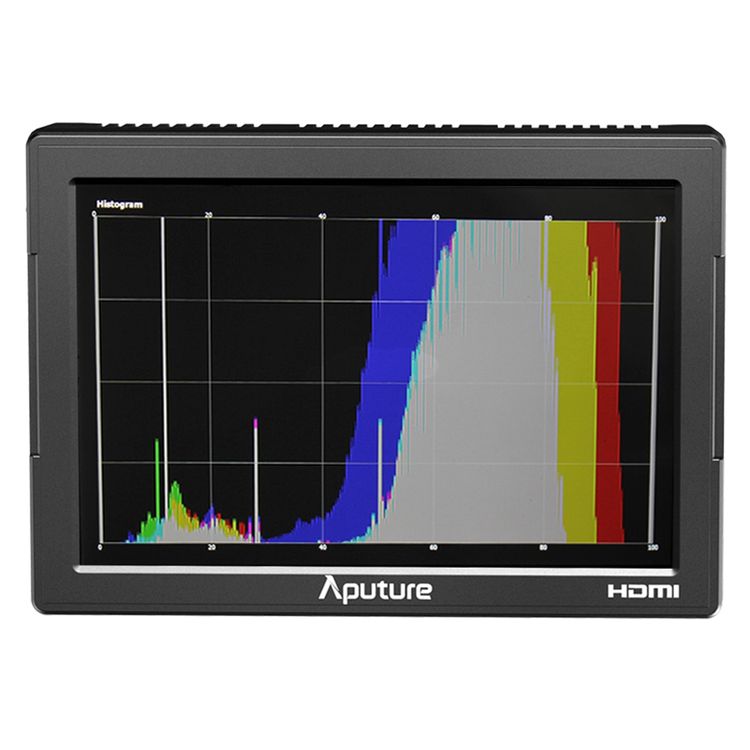

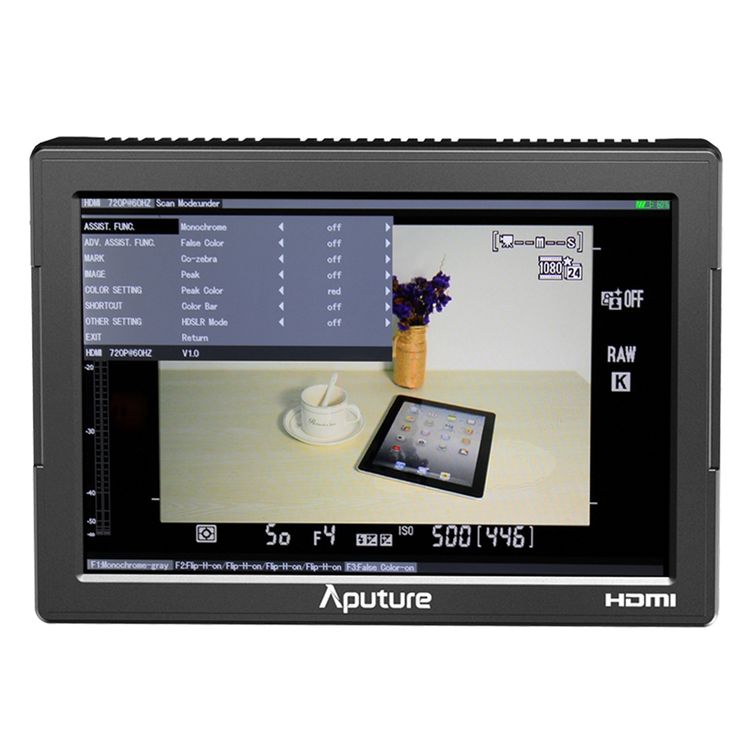

4. pseudocolor, zebra crossing and histogram give you the access to real-time monitoring sensitometry and brightness.

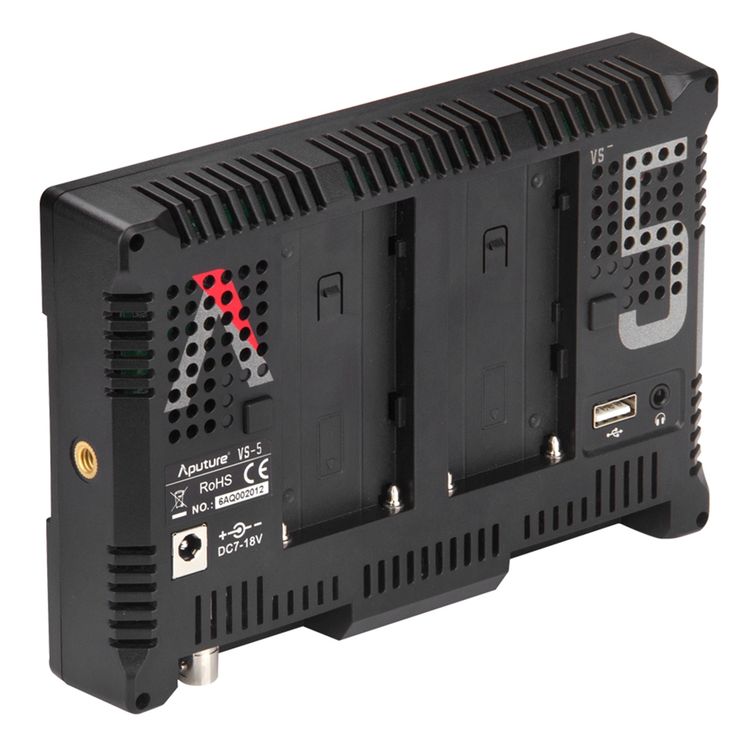

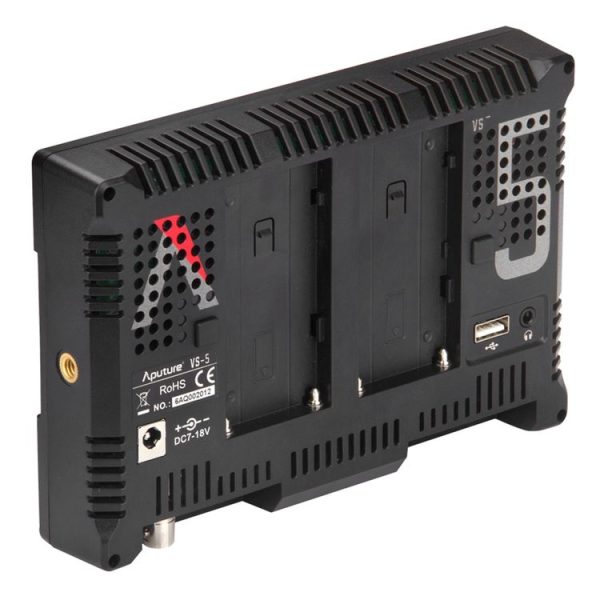

5. Built in double push-button battery jar, support 3 kinds of power supply.
6. Usable batteries:
–Sony NP-F Series: NP-F550/F570/F770/F960/F970;
–NP-FM/QM Series: FM50/FM51/FM55H/FM500H/QM50/QM51/QM71D/QM91D6.
The batteries are not included in this item.

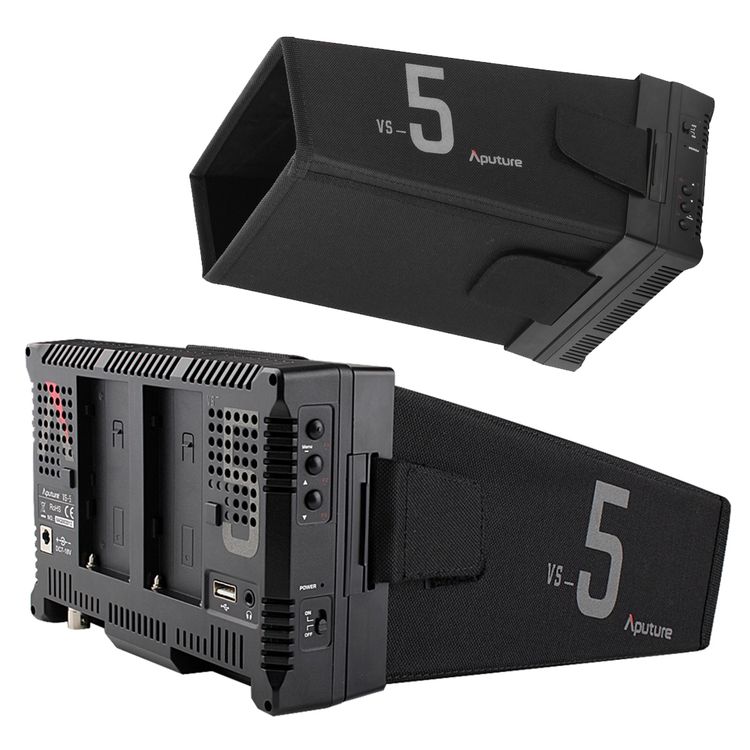

7. Equipped with solid sun shade.
8. One cloth bag is attached to this item, convenient to carry about.

Additional Information

General

Model: VS-5
Display Size: 7.0 inch
Display Type: FineHD
Resolution: 1920 x 1200 pixels
Brightness: 450cd/m2
Contrast Ratio: 1200:1
Viewing Angle: 160/160(H/V)
Input Signal: HDMI, HD-SDI
Earphone Jack: 3.5mm
Pixel Pitch: 0.07875 x 0.07875 mm

Power

Power Consumption: Less than 9W
Input Voltage: DC 7-18V
Working Voltage: DC 12V
Working Current: 700mA

Work Environment

Work Temperature: 0 to 55 degree celsius
Store Temperature: 0~70 degree celsius
Relative Humidity: 30-70 Percent

Dimension

Item Size: 180 x 122 x 35 mm
Item Weight: 475 g (Bare Machine)

Package Inlude

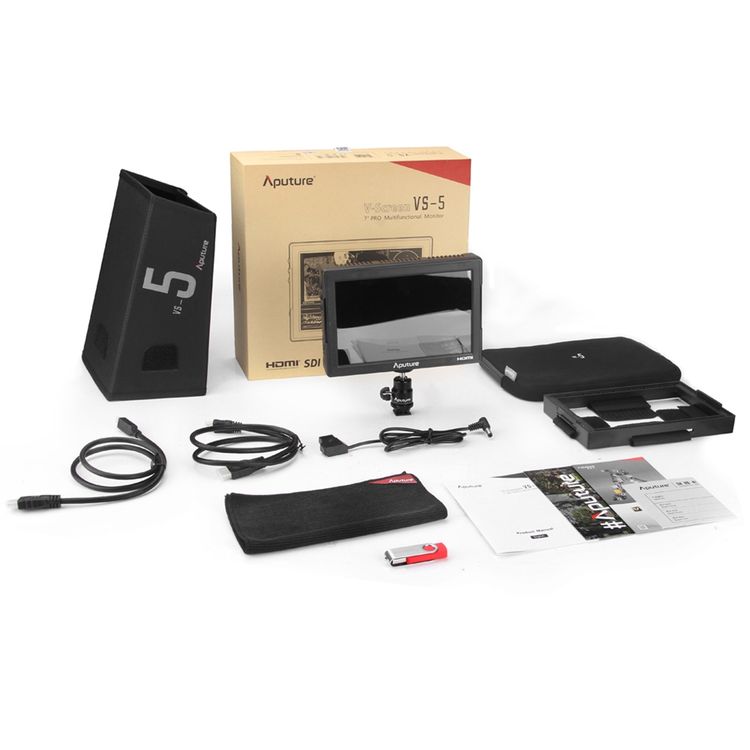

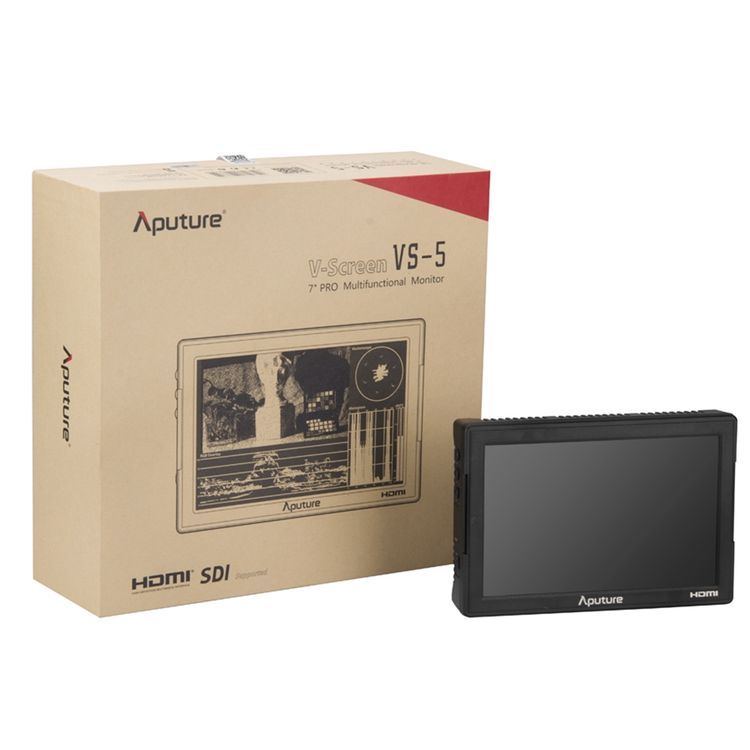

Packing Contents: 1 x Monitor, 1 x Manual, 1 x Warranty Card, 1 x Handy Case, 2 x HDMI Cable, 1 x Power Line, 1 x U Disk, 1 x Sun Shade, 1 x Sun Shade Fixed Frame, 1 x Cleaning Cloth

Weight & Size

Weight: 1.830kg
Size: 27cm x 26cm x 9cm
