Overview

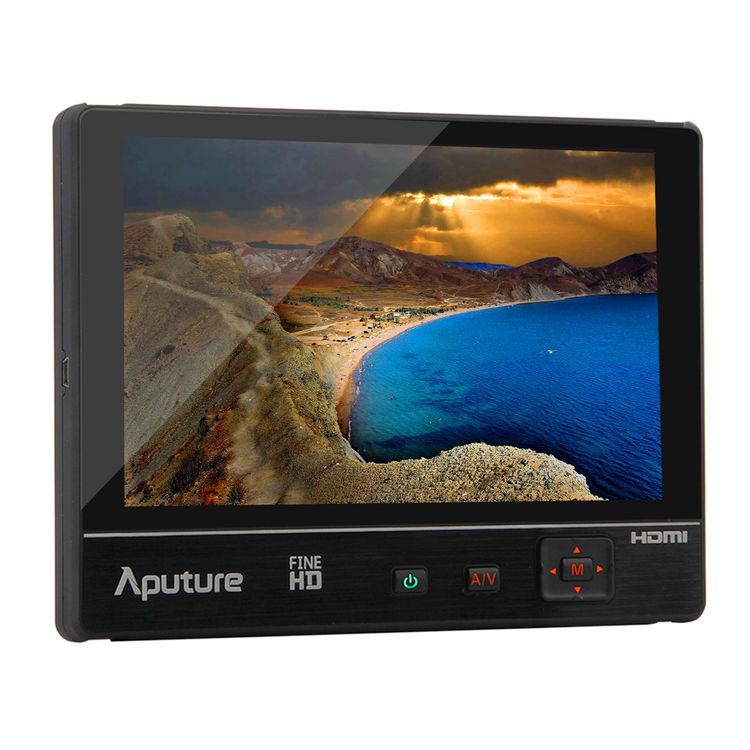

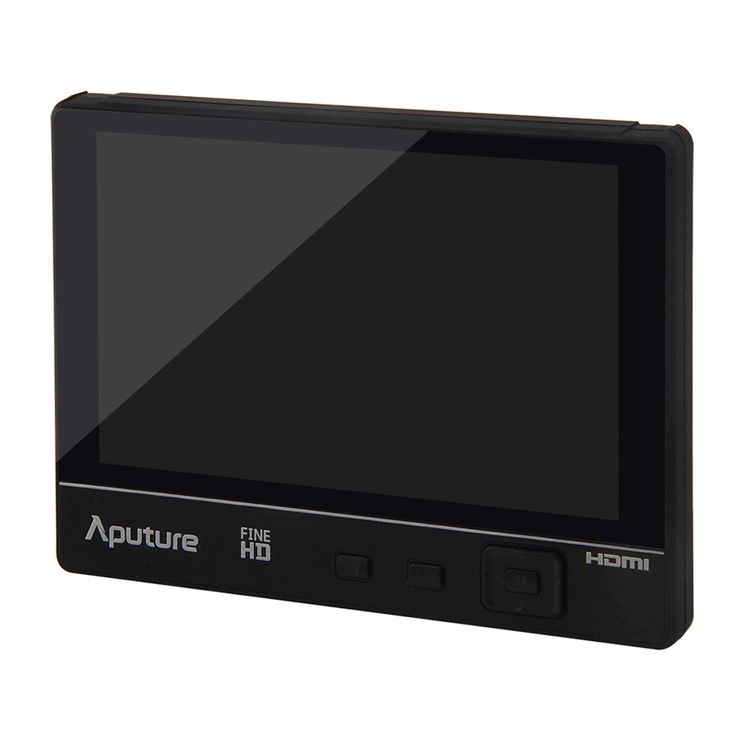

Aputure V-Screen VS-2 FineHD is a professional field monitor with a 7 inch LCD screen (1920 x 1200), which provides diverse video interface, such as HDMI, YPbPr, and AV. As a multi-function monitor, VS-2 FineHD features false color, co-zebra, peak, histogram, safe area, and volume bar.
1. High resolution 1920*1200, slim and lightweight IPS screen
2. LTPS screen technology
3. Extra OSD, get more information
4. Use multiple exposure monitoring features simultaneously
5. Optimized PEAK monitoring
6. Popular safe area displays (2.35:1/1.33:1/1.66:1/1.85:1/70%/80%/90%)
7. Transformable picture (Vertical & Horizontal flip)
8. Precise color calibration before shipping
9. False Color: False color is used to aid in the setting of camera exposure, which enables proper exposure to be achieved without the use of costly, complicated external test equipment.
10. Camera mode
11. Volume Bar: Monitor the volume in left and right channels. And it is marked by 3 colors, green, yellow, and red, depending the volume level.
12. Histogram: The brightness histogram is a quantitative tool to check the picture brightness. Support multiple kinds of signal inputs (HDMI/YPbPr/AV)
13. Easily update firmware through USB
14. 7 languages
15. Double power system

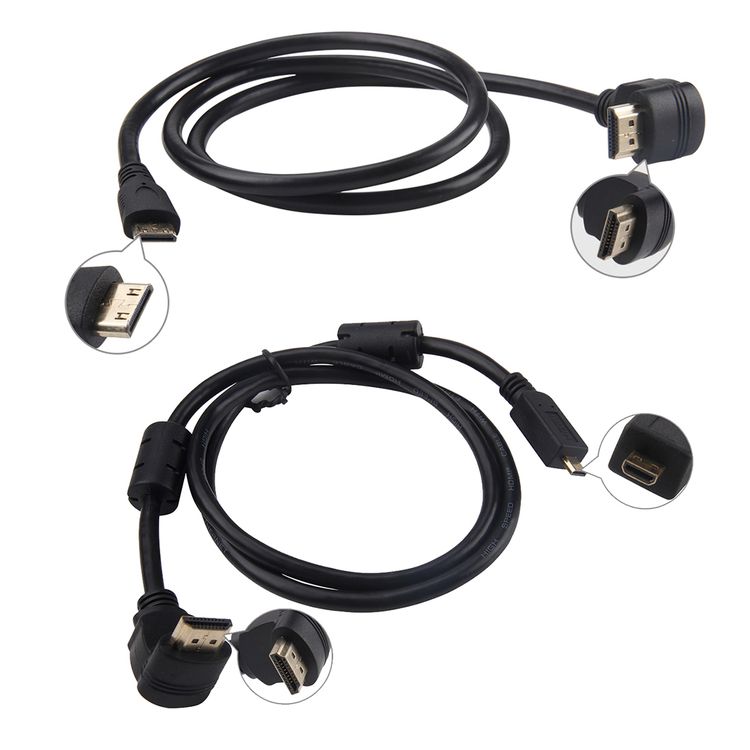

16. New cables (HDMI A type to D type), and power adapter cable (D type to DC)
Additional Information
Model: VS-2 FineHD
Material: ABS
Display Size: 7.0 inch
Display Type: LCD
Resolution: 1920 x 1200 pixels
Brightness: 450cd/m2
Aspect Ratio: 4:3, 16:9
Viewing Angle: 160C/160C (H/V)

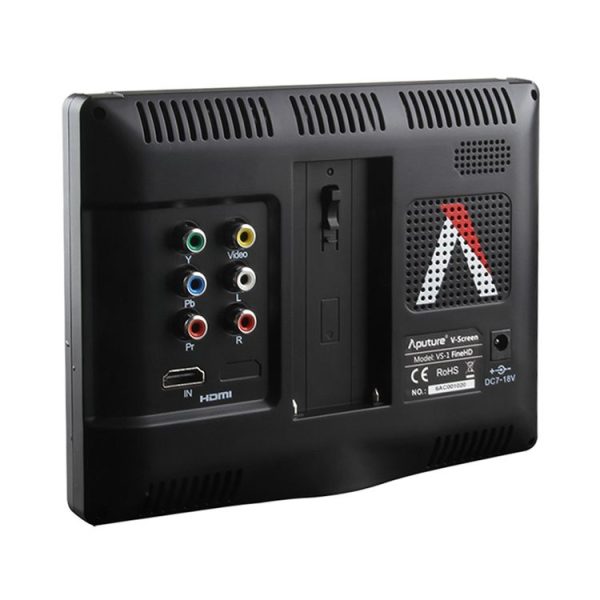

Input Signal: YpbPr, HDMI, AV
Speaker: Yes
Earphone Jack: 3.5mm
Current: =< 950mA
Power Consumption: <6W
Working Voltage: DC 9-16V
Work Temperature: 0 to 55 degree celsius
Store Temperature: 0~70 degree celsius
Size: 182*138*23mm
Weight: 365g
Packing Contents: 1 x Monitor, 1 x Manual, 1 x HDMI cable, 1 x Battery Plate, 1 x Articulate Arm, 1 x Firmware Upgrade Cable, 1 x Soft Cleaning Cloth, 1 x Power Adapter
Weight: 1.664kg
Size: 29cm x 20cm x 12cm
