Overview

1. NVIDIA NF6100-405 main chipset, Nvidia MCP61S chipset.
2. Number of CPU slots: 1, CPU slot type: Supports Socket AM2/AM2+/AM3 AMD940/938.
3. The CPU supports Athlon64/Athlon 64 X2/Athlon64 FX/Sempron/AthlonII X2.
4. FSB: HT 1000MHz.
5. Memory type: DDR2/DDR3, dual channel DDR2 533/667/800, DDR3 1066/1333/1600 memory.
6. Integrated chip: graphics card / sound card / network card.
7. Audio chip: Realtek ALC883 sound chip is used.
8. Graphics chip: Built-in Nforce6100 high-performance graphics card.
9. NIC chip: Onboard 100M NIC.
10. 6-8 USB ports, 4 rear, 2-4 front.
11. PCI-E 2.0 16X graphics card slot.
12. One PCI slot, one IDE slot, no FDD slot.
13. PS/2 mouse interface, PS/2 keyboard interface.

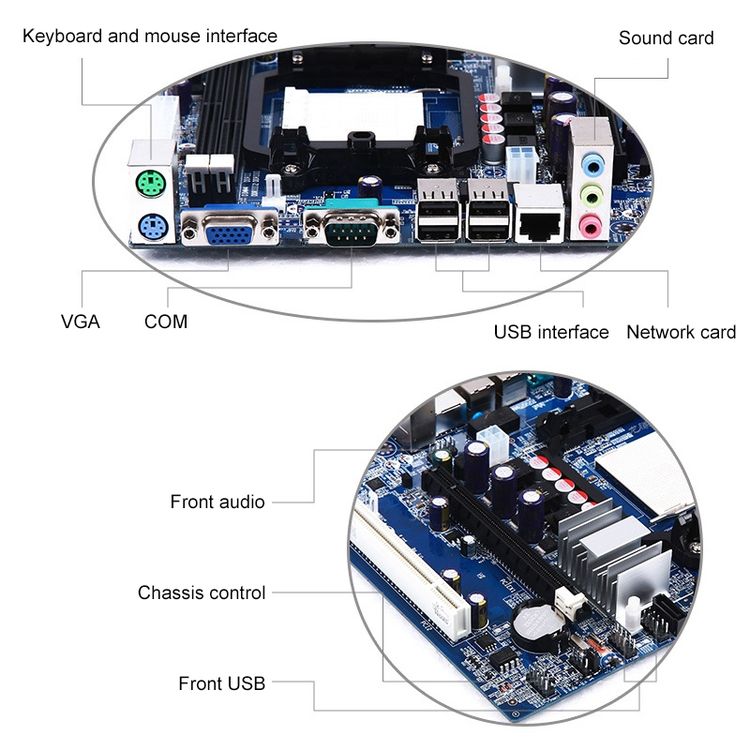

14. External port: audio interface / VGA interface / network card / COM port / USB interface.
15. Two SATA II connectors.
16. Memory socket: 1 x DDR2 DIMM, 1 x DDR3 DIMM.
17. Micro ATX form factor.
18. Power socket: one 4-pin, one 24-pin.
19. Dimensions: 21.3×17.3cm.

Note:
Do not put the chassis or screws on the goods you receive. In case the product does not meet the requirements you need, install it after the system has been installed and tested without any problems.

Additional Information

Weight & Size

Weight: 0.617kg
Size: 26cm x 22cm x 6cm

SKU: B0100016342 Category: Tag: Condition: New
