Overview
Compared to average 220 V wireless remote control switch, this switch is more safer and more stable, voltage from 85 V to 260 V, avoid the switch damage caused by the voltage instability, prolong the service life of switch.
1. Jog: press one button is working / ON loosen your finger on the same button is stop / OFF. One channel switch (receiver) needs one button remote control (transmitter).
2. Self-lock: Press one button for one time is working / ON. Press the same button again is stop / OFF (one channel switch (receiver) need one buttons remote control (transmitter).
3. Inter-lock: press one button is working / ON, press another button is stop / OFF (one channel switch (receiver) need ONE buttons remote control (transmitter).
Here is the 1CH and one button remote control.you can choose any working way, but you had better chose inter-lock, so all the buttons have used. Please tell us the working way that you want after you buy it, if you are not the professional person, we would set the working way as your requirement before we ship.
1. Press the learning button, it means it has been putting in the study when the indicator light are flashing. Then you press any buttons of the remote control to transmit signal. It means studying successfully when the indicator flashes 2 times until the light goes out.
2. Remove / clean: Press the learning button about 8 seconds, the indicator turn on to off, it means the information that you keep have been removed successfully.
1. Remote control switches, wireless remote control products.
2. Remote control of opening door; Card locks; Access control power supply box.
3. Wireless security alarm.
4. Remote control of the curtains.
5. Lighting remote control receiver.
Additional Information
Working Temperature: -40 Degree Celsius ~+80 Degree Celsius
Working Voltage: AC 85V-260V
Output Current: 10A
Working Frequency: 315MHZ
Receiver Sensitivity: -105dBm
Output way: Jog, Self-lock, Inter-lock
Code Type: Learning Code
Operating Voltage: DC 12V
Operating Current: 30MA
Operating Frequency: 315MHz
Frequency Distance: 200m
Battery Type: Button Cell (2 PCS)

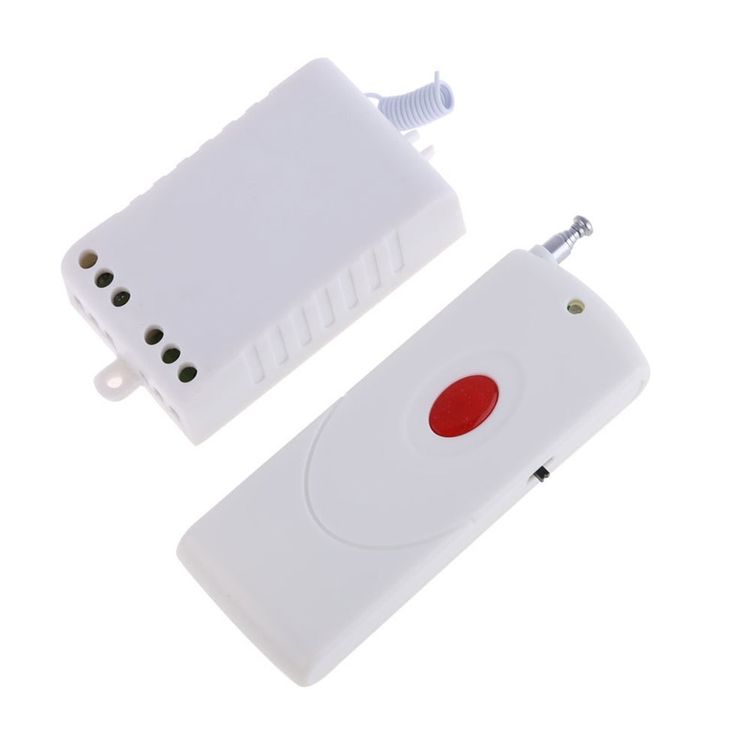

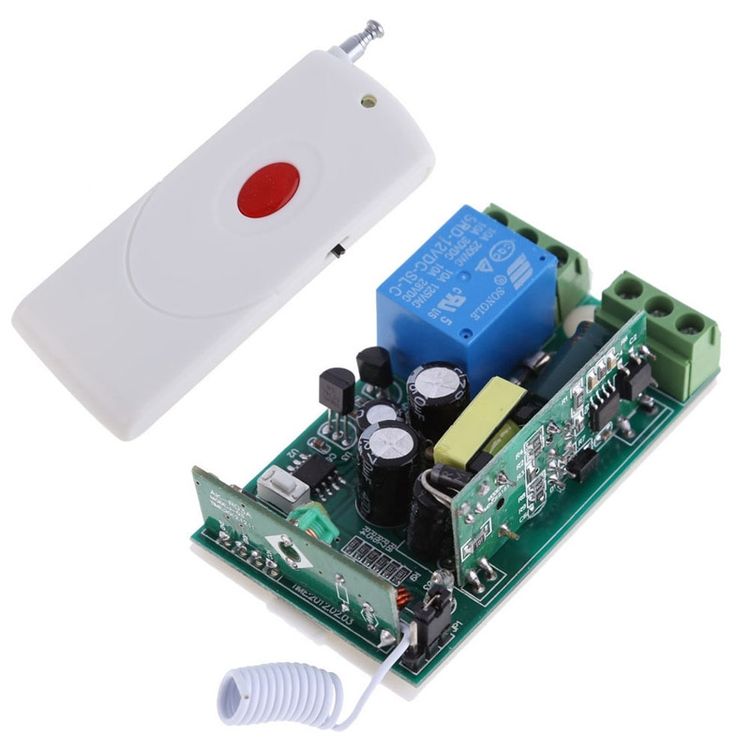

Package Contents: 1 x Receiver, 1 x Transmitter(Including 2 x Batteries)
Weight: 0.130kg
Size: 7cm x 4cm x 2cm
