Overview
1. 100% Brand new and high quality
2. Lightweight and portable
3. Easy to install and use
1. Jog: press one button is working / ON loosen your finger on the same button is stop / OFF. One channel switch (receiver) needs one button remote control (transmitter).
2. Self-lock: Press one button for one time is working / ON. Press the same button again is stop / OFF (one channel switch (receiver) need one buttons remote control (transmitter).
3. Inter-lock: press one button is working / ON, press another button is stop / OFF (one channel switch (receiver) need ONE buttons remote control (transmitter).

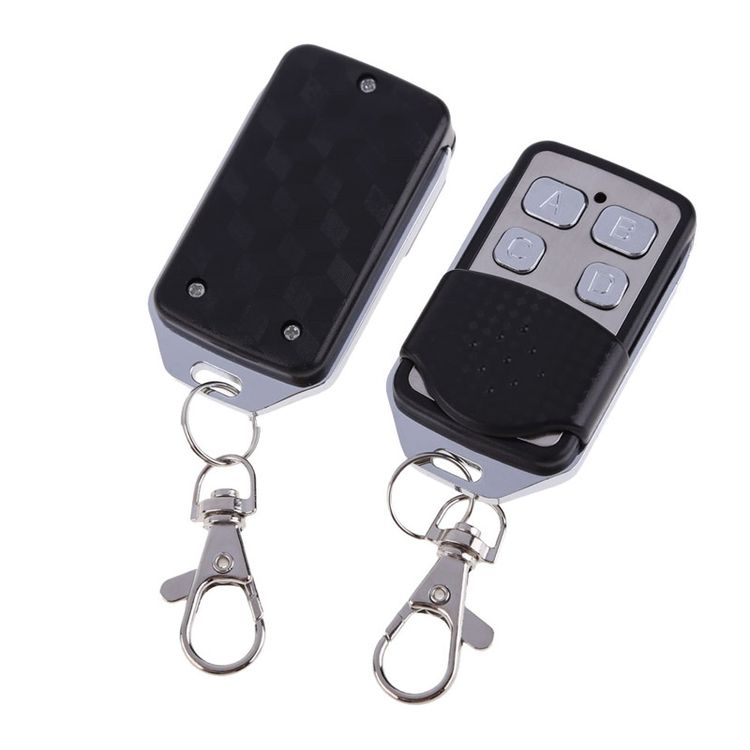

1. Here is the 4CH and 4 buttons remote control. You can choose all the working ways that you can choose, you have better choose the Jog or self-lock, so all the buttons has been used.
2. Please tell us the working way that you want after you buy it, if you are not the professional person, we would set the working way as your requirement before we ship.
1. Press the learning code, the indicator flashes, loosen your finger, press any button of the remote control, the indicator flashes 2 times and off. It means you learn it successfully.
2. It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control
3. Remove / clean: Press the learning button about 8 seconds, the indicator turn on to off, it means the information that you keep have been removed successfully.
1. Remote control switches, wireless remote control products.
2. Remote control of opening door; Card locks; Access control power supply box.
3. Wireless security alarm.
4. Remote control of the curtains.
5. Lighting remote control receiver.
6. Wireless industrial controller.
Additional Information
Working Temperature: -20 Degree Celsius ~+60 Degree Celsius
Working Voltage: AC 220V
Output Current: 10A
Working Frequency: 315MHZ
Receiver Sensitivity: -105dBm
Output way: Jog, Self-lock, Inter-lock
Code Type: Learning Code
Operating Voltage: DC 12V
Operating Current: 30MA
Operating Frequency: 315MHz
Frequency Distance: 20-200m (open place)
Battery Type: Button Cell (2 PCS)

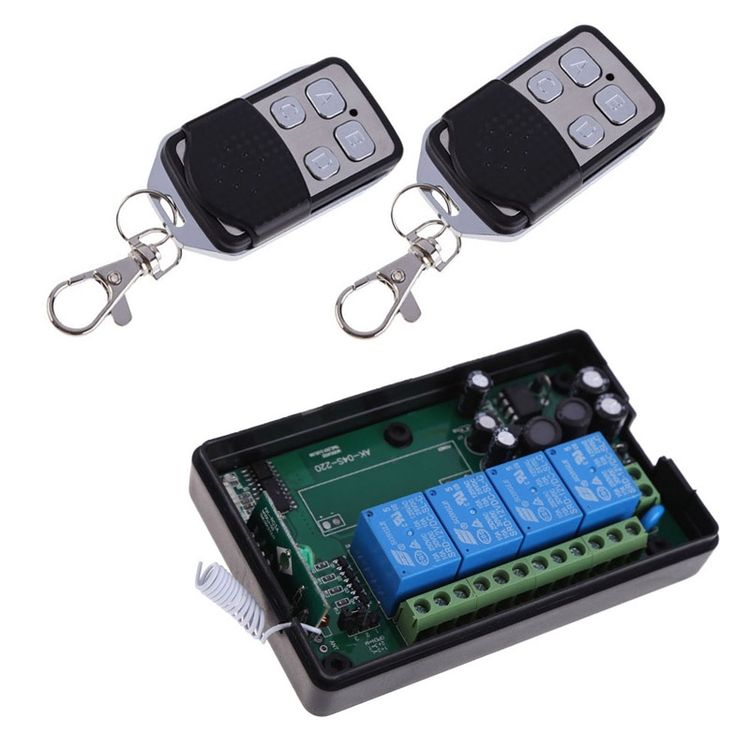

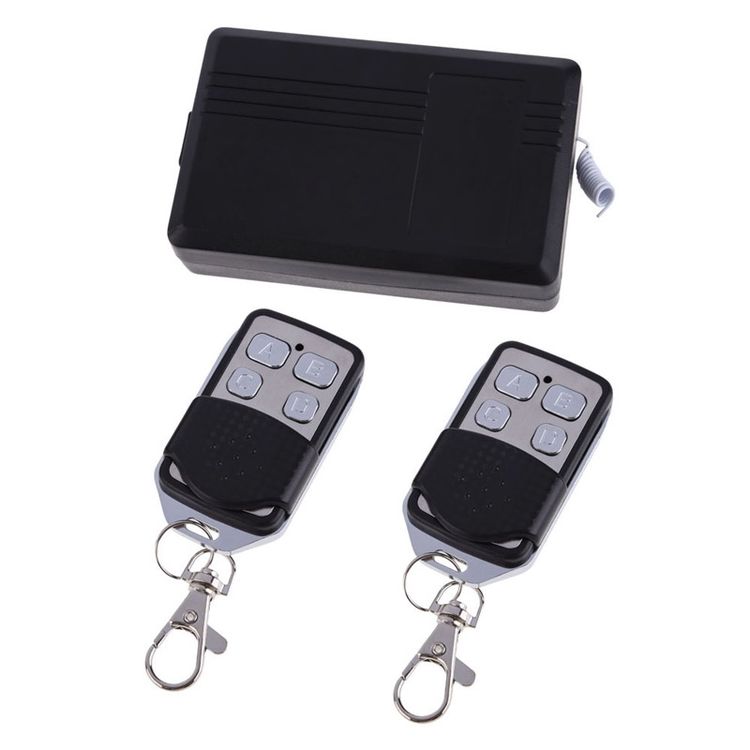

Package Contents: 1x Receiver (with the cover), 2 x 4 Buttons Remote Controllers (battery included)
Weight: 0.296kg
Size: 10cm x 6cm x 3cm
