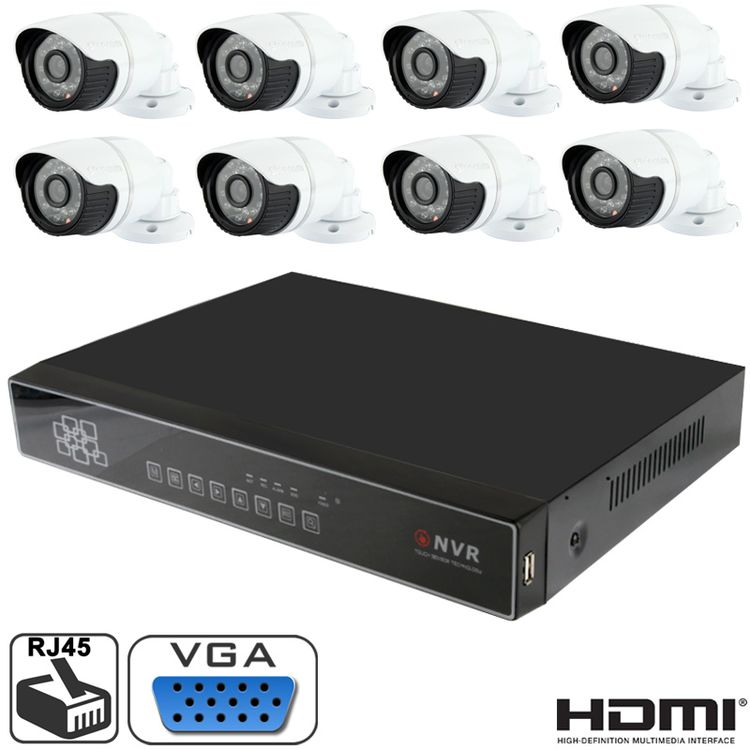

Overview

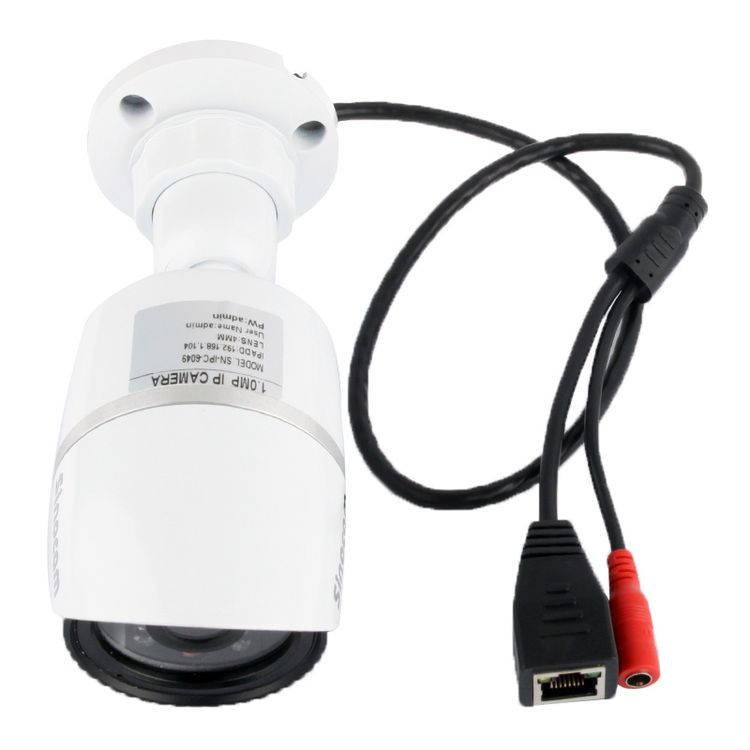

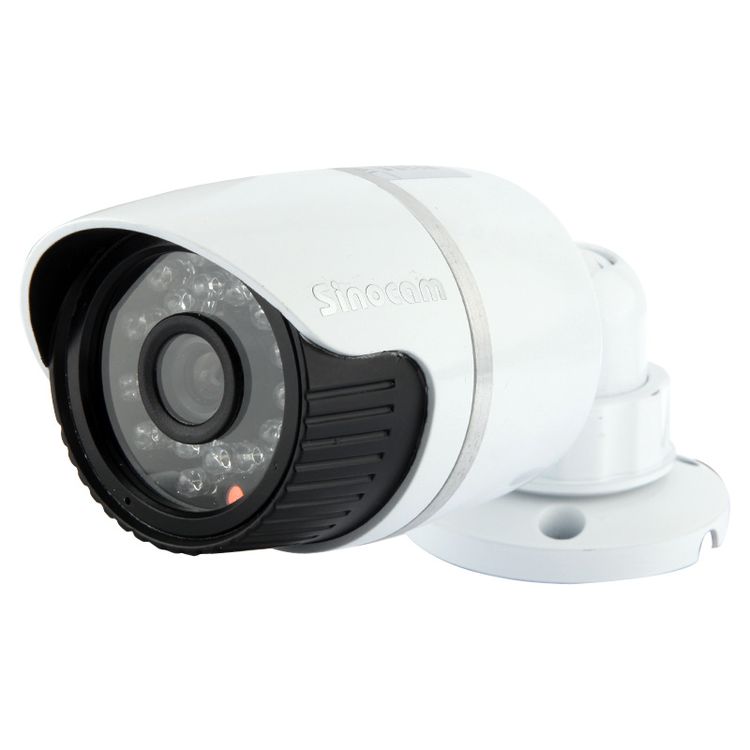

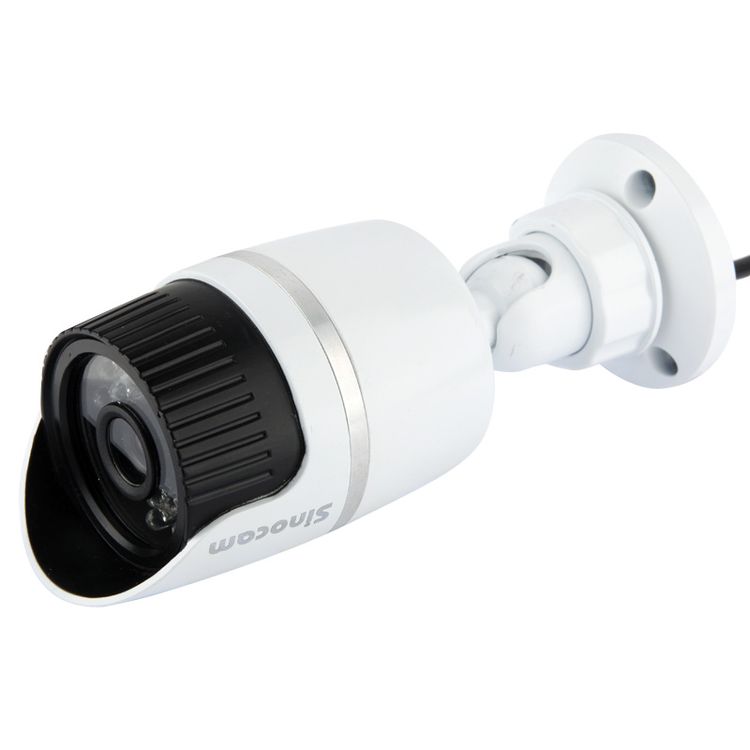

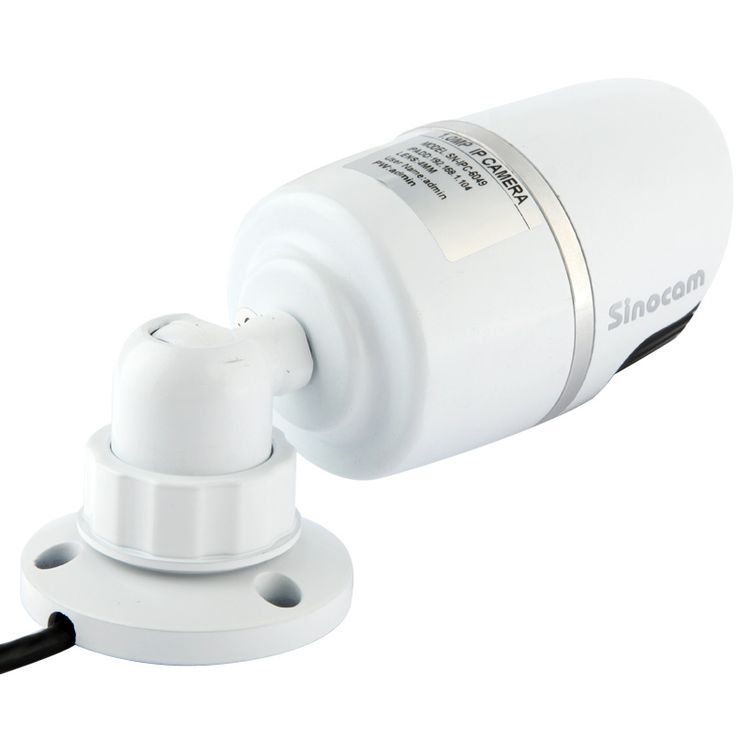

IP Camera Feature
1) H.264 compression format, MJPEG/JPEG Baseline
2) 1.0 Mega pixel Resolution, Support 720P (1280*720)
3) Dual Stream, resolution, bit rate adjustable
4) 4.0 mm Mega Pixel Fixed Lens included
5) Built-in IR-CUT, auto-switch day and night, IR Range 20 m
6) Motion detection recording, alert with snapshots via email
7) Build-in Privacy Mask, image snapshot, Title OSD, DDNS
8) Support RTSP Compatible with VLC Media Player
9) Support iPhone / iPad / Android Smart Phone
10) Support IE6.0~8.0, Fire fox, Google browser
11) Support up to 20 users online simultaneously
12) Free CMS Software, paid Software for optional
13) Support P2P and PnP function for optional
14) Sensor: 1/0″ Progressive Scan CMOS
15) Effective Pixels: 1280(H) × 720(V)
16) Day/Night Auto, dual IR-Cut filter
17) IR LED: 24pcs IR LED IR Range 20m (98.43feet)
18) Max S/N Ratio: 39dB
19) Electronic Shutter Rolling Shutter
20) Focal Length: Fixed Focal, 4.0 mm / F1.8
21) Network Interface 10/100M, RJ-45 connector
22) Audio video encoding
23) Video Compression H.264 Main Profile; MJPEG/JPEG Baseline
24) Resolution: Main Stream 720P (1280*720) 25fps
25) Sub Stream: VGA 640*360 25FPS / 116*112 25FPS
26) Video Bitrate: 32Kbps~4Mbps,Supports CBR/VBR
27) Title OSD Supports channel name, date, and video stream information overlay;
28) OSD location is adjustable
29) Privacy Mask: 4 configurable regions
30) Image Orientation image flip and mirror
31) Auto Image Control Functions: Auto Exposure Control (AEC); Auto White Balance (AWB); 32) Auto Band Filter (ABF)
33) Auto Black Level Calibration (ABLC)
34) Image Controls: Color saturation, hue, gamma, sharpness (edge enhancement), lens correction, defective pixel canceling, and noise canceling
35) Data transmission and storage
36) Data storage: Video and Image
37) Recording set up to record by motion trigger, alarm trigger, manual, or schedule
38) Alarm Output: E-mail, Explorer, Software
39) Network protocol: TCP/IP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP
40) ONVIF protocols: Support 2.0 version
41) Remote View: PC IE 6.0~8.0, Firefox, Chrome; max 10 users
42) Environmental Casing: Waterproof (IP66 Rated), Outdoor Use
43) Installation: Brackets Included, Wall Mount
44) Operating Temperature: -20 °C ~ 50 °C (-4 °F ~ 122 °F) for DC 12V
45) Operating Humidity 0% -85% RH
46) Power: DC12V 1A
47) Power Consumption 9W(MAX)
48) Product size: 16.5cm x 6cm

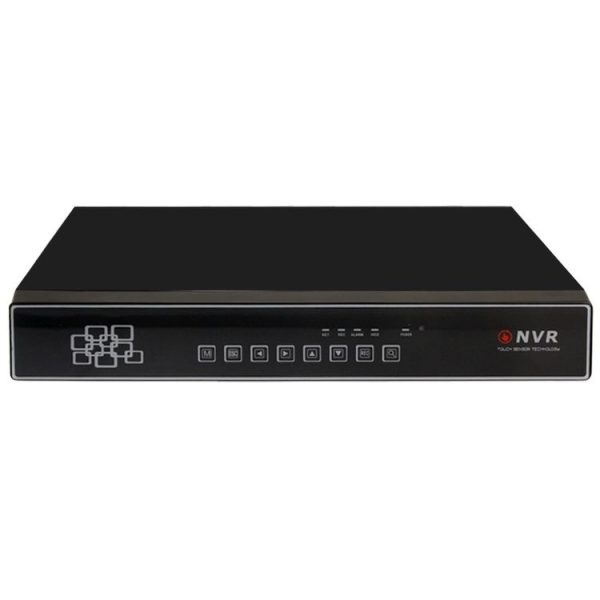

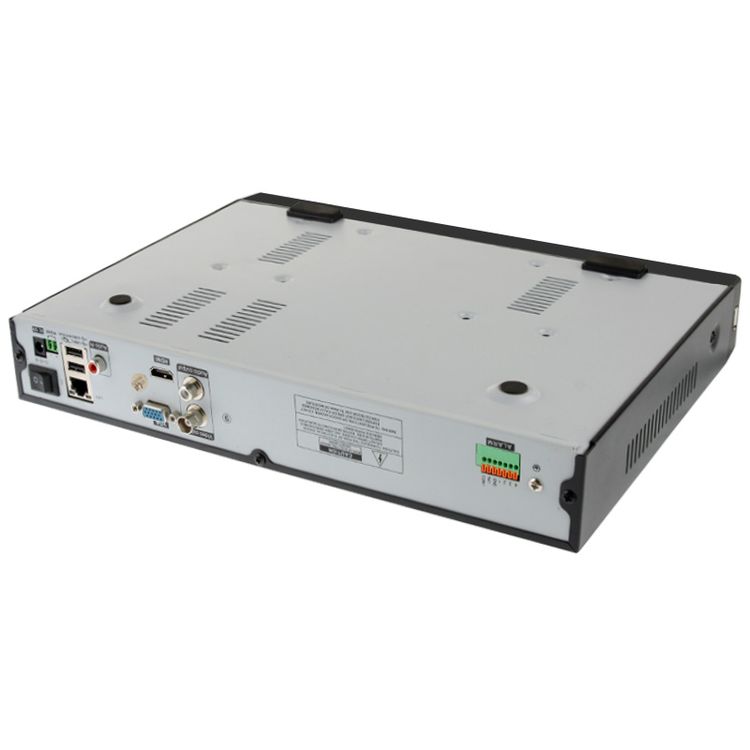

NVR Feature
1) It can connect with IP camera and network video server, support ONVIF / P2P / Video push
2) Live view, record, search file, backup, playback (9CH playback Syn)
3) Digital zoom (both in live view and playback)
4) Dual stream: Support
5) Resolution: 1080P (1920×1080) 30fps / 960P / (1280×960) / 720P (1280×720) 30fps
6) Motion Detection: Multiple zone detection, 1~6 sensitivity adjustable(IPC match)
7) Playback: 9CH 960P/720P
8) Privacy Zone: 9 zone for each IPC (IPC match)
9) Record mode: Manual, Auto, MD, Alarm (IPC match)
10) Backup Local HDD / U-disk / removable HDD / DVR-RW / network storage
11) Operate mode: Mouse
12) Storage Local and network
13) Video input: 9 × (1280*720) IP camera / 9×(1280*960) IP camera
14) Audio input: 9 IP audio input

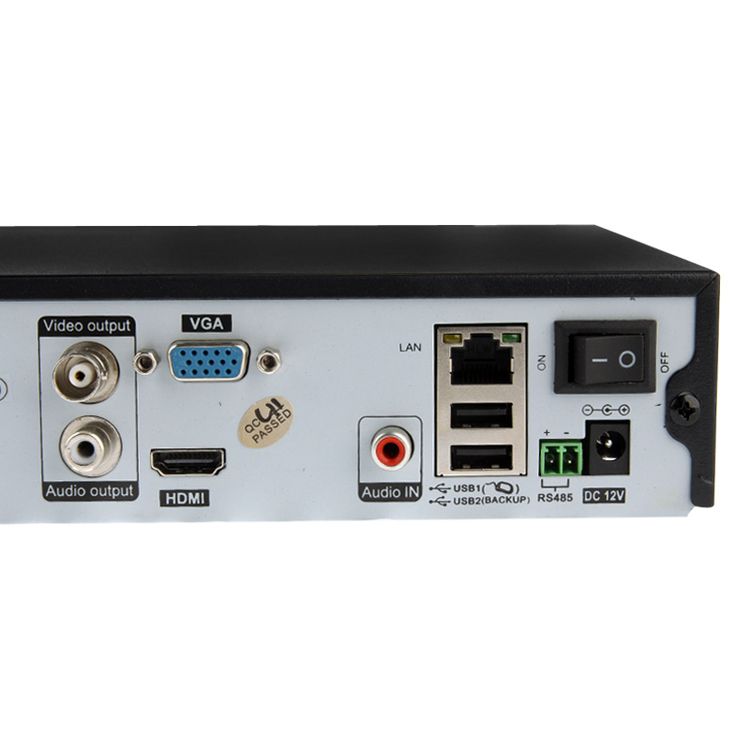

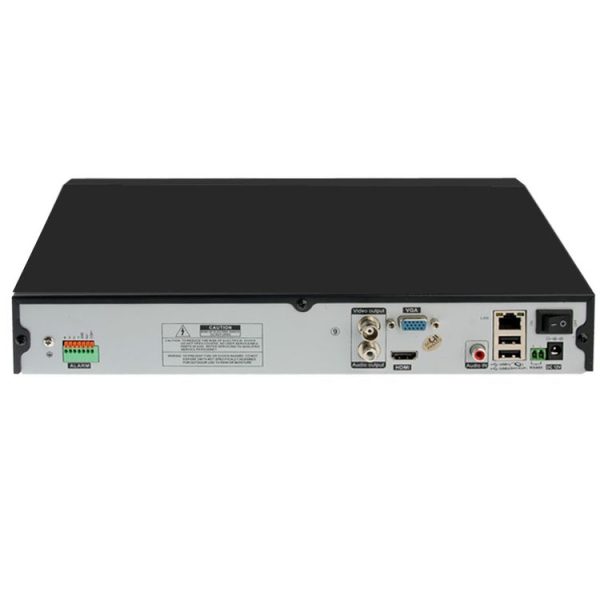

15) Video output: 1VGA+1HDMI
16) Audio output: 1 RCA
17) Network interface: 1 RJ45, 10M / 100Madaptive Ethernet Interface
18) RS485 port: Standard 485 port
19) USB port: 2 USB 2.0 port
20) Wireless: WiFi
21) HDD: Interface type 2SATA interface
22) Capacity Up to 3TB capacity for each disk
23) Power Supply: 12V2.6A
24) Consumption: ≤25(without HDD)
25) Working Temperature: -10℃~+55℃
26) Working Humidity: 10%-90%
27) Size: 33.5cm × 25.5cm × 5cm
Additional Information
Weight: 4.000kg
Size: 39cm x 32cm x 20cm
