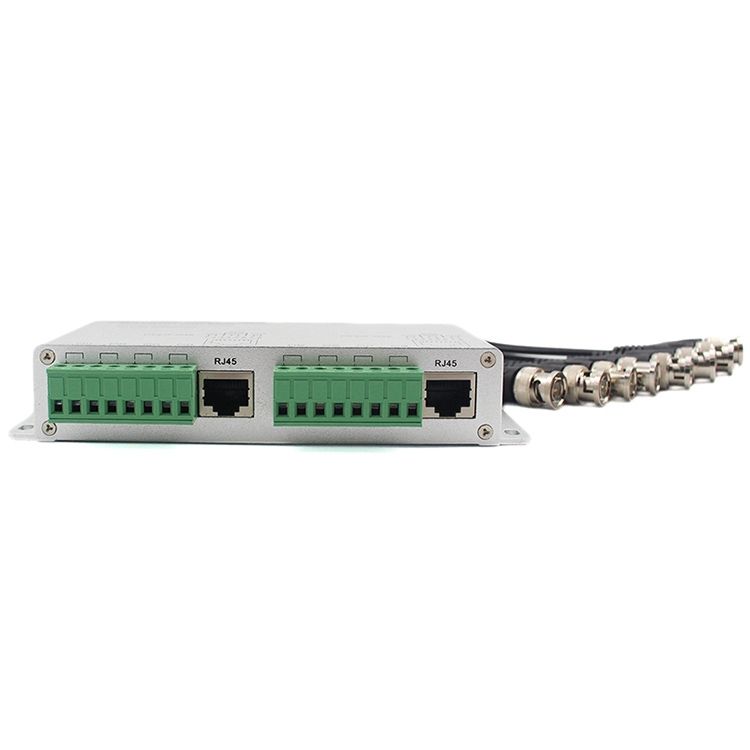

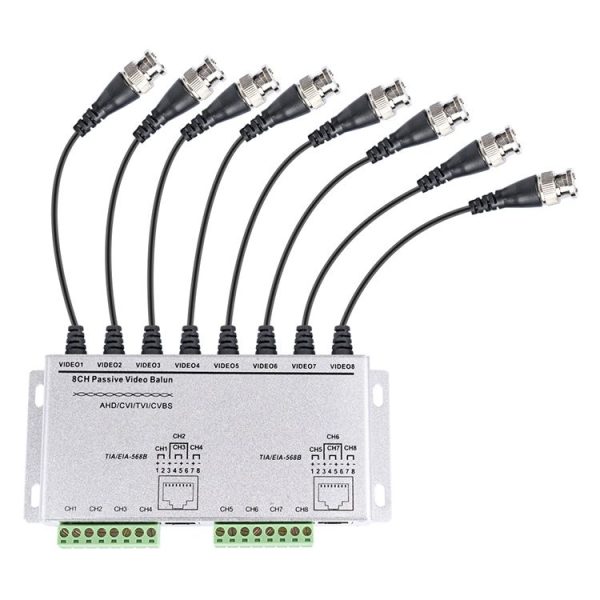

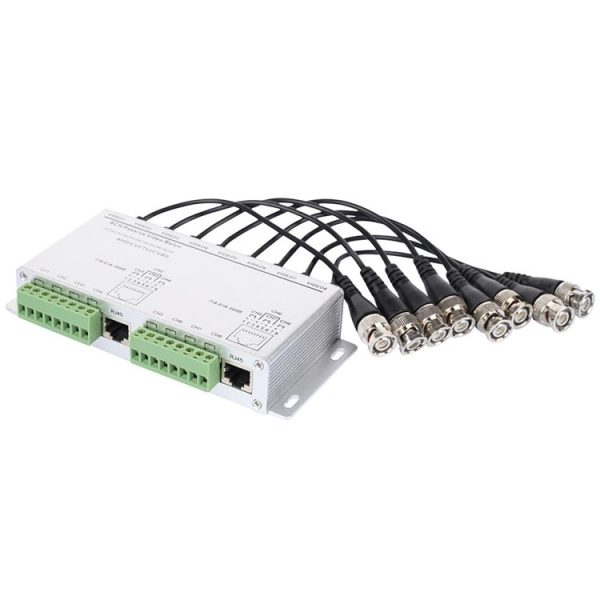

8 CH UTP Passive Video Balun, CCTV Via Twisted Pairs


R740

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1) Adopt differential signal transmission with excellent anti-jamming ability
2) Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal

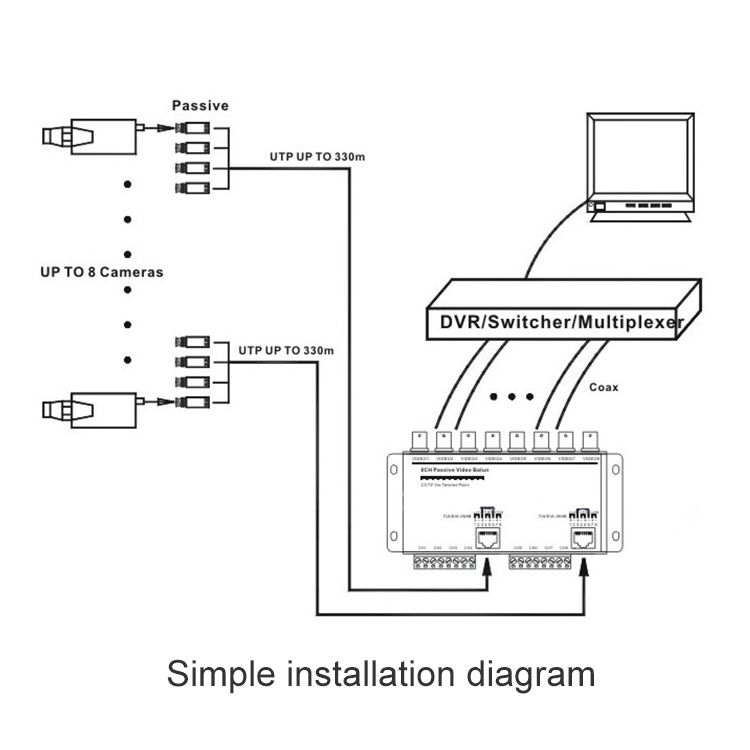

3) Full-motion CCTV video at distance up to 330m when used with any passive UTP video transceiver
4) Up to 1500m with any active UTP video receiver
5) No power required
6) Built-in transient suppression protection
7) Frequency response: DC-8MHz
8) CMRR (Common mode rejection ratio): 60dB
9) Impedance: BNC / 75ohms, RJ / 100ohms
10) Applicable to NTSC / PAL / SECAM / CCIR systems
11) Dimensions: 157 x 65 x 29mm

Additional Information

Weight & Size

Weight: 0.550kg
Size: 17cm x 13cm x 6cm

SKU: B0100006755 Category: Tag: Condition: New
