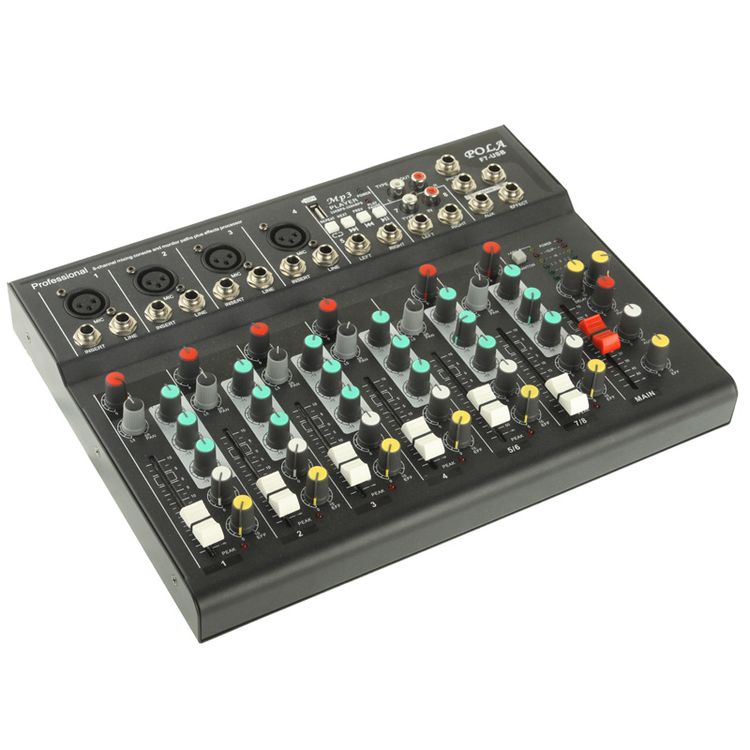

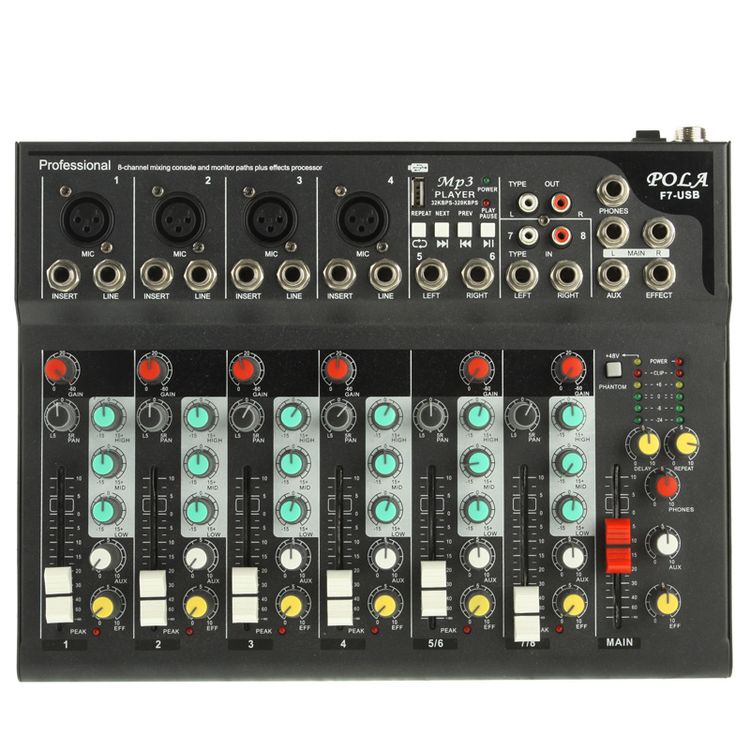

7 Channels Professional Mixing Console and Aux Paths Plus Effects Processor


R3173

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1) 7 Channels mixing console with two stereo channels and a separate stereo tape channel
2) Separate input jack controls for MIC and line inputs mono channels
3) XLR MIC connectors on al mono channels
4) Low noise, discrete MIC preamplifiers on all microphone inputs
5) Dedicated inserts on al mono channels
6) Balanced 1/4” stereo jack and balance controls on all stereo channels
7) Separate stereo tape channel with 1/4” and RCA jacks
8) Stereo output for recording applications
9) English musical active 3-babd EQ on all seven channels
10) AUX and effects paths as well as separate gain controls on all channels
11) High grade sealed faders
12) Insert option for external effects devices
13) AUX send and EFF send controls in the main section for optimal level adjustment
14) Headphones output with dedicated volume control
15) Built-in +48V phantom power for condenser MICs
16) Extremely rugged construction ensures long life even under the most demanding conditions
**Specification:
1) Input channels 1 through 5:
-MIC input: electronically balanced, discrete input configuration
Frequency response: 10Hz to 200KHz
Gain range: 14db to 60db
SNR: 120db
-Line input: Electronically balanced
Frequency response: 10Hz to 130KHz
Gain range: -6db to 38db
SNR: 95db
2) Stereo channels:
-Frequency response: 10Hz to 70KHz
-Gain range: Line: -8db to 15db / MIC: 13db to 60db
-SNR: 96db
3) EQUSLIZATION:
-Low: 50Hz, +/-15db
-MID: 700Hz, +/-15db
-HI: 10KHz, +/-15db
4) Main MIX:
-Main outputs: +28dbu balanced / +22dbu unbalanced
-AUX send: +22dbu unbalanced
-EFF Send: +22dbu unbalanced
-Tape out: +22dbu unbalanced
-Phone output: +15dbu / 150

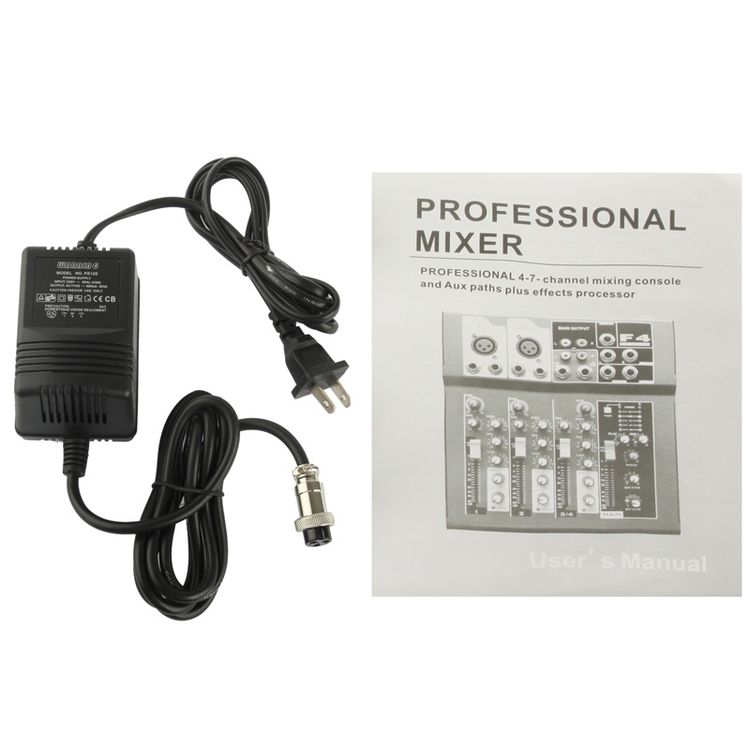

5) Power adapter: Input: AC 230V, 50Hz, output: AC 17V
6) Dimensions: 420mm (L) x 195mm (W) x 50mm (H)

Additional Information

Weight & Size

Weight: 3.320kg
Size: 41cm x 27cm x 9cm

SKU: C0100017669 Category: Condition: New
