6966 DIY Bluetooth 5.0 Audio Receiver Board Module MP3 Lossless Player Wireless Stereo Music Amplifier Module (White)


R82

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features

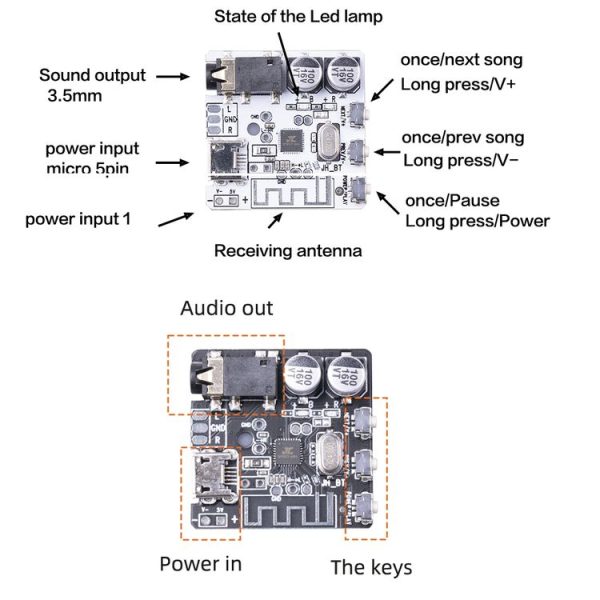

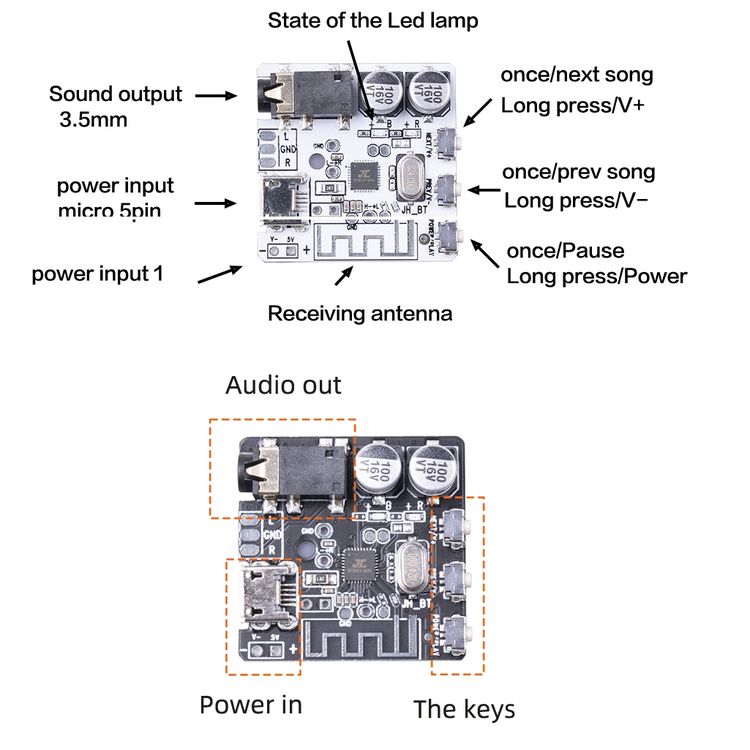

1. Using Bluetooth 5.0 main control chip, good transmission effect and high stability
2. With button control, there are control up and down music, volume addition and subtraction, playback, pause, switch machine, etc., and reserved high and low level control interfaces, regardless of daily use, and DIY modification, it is very playable
3. Micro 5 Pin interface power supply, ordinary mobile phone charger charging cable can be used.

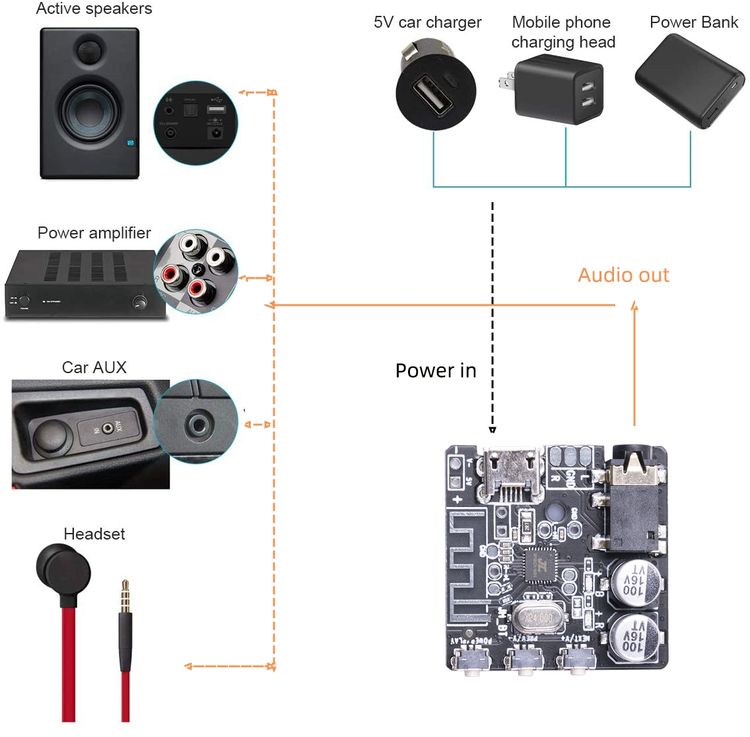

4. Product use: Bluetooth audio signals from mobile phones, laptops, and tablets can be transmitted to power amplifiers, active speakers and other devices through this Bluetooth audio receiver. The audio interface can also be connected to ordinary headphones with a 3.5mm interface. The headset becomes a Bluetooth headset (without a microphone, voice chat is not supported)

Specification

1. Power interface: Micro 5 Pin (reserved 2.5mm welding port, this model does not support battery power supply)
2. Input voltage: 3.7V-5V
3. Signal-to-noise ratio: 90DB
4. THD+N: -70DB
5. Crosstalk: -86db
6. DNR: 91dB
7. Transmission protocol: A2DP/AVCTP/AVDTP/HFP
8. Transmission distance: about 10 meters (the shorter the distance, the better the stability)
9. Output interface: 3.5mm stereo (reserved soldering points, you can DIY by yourself)

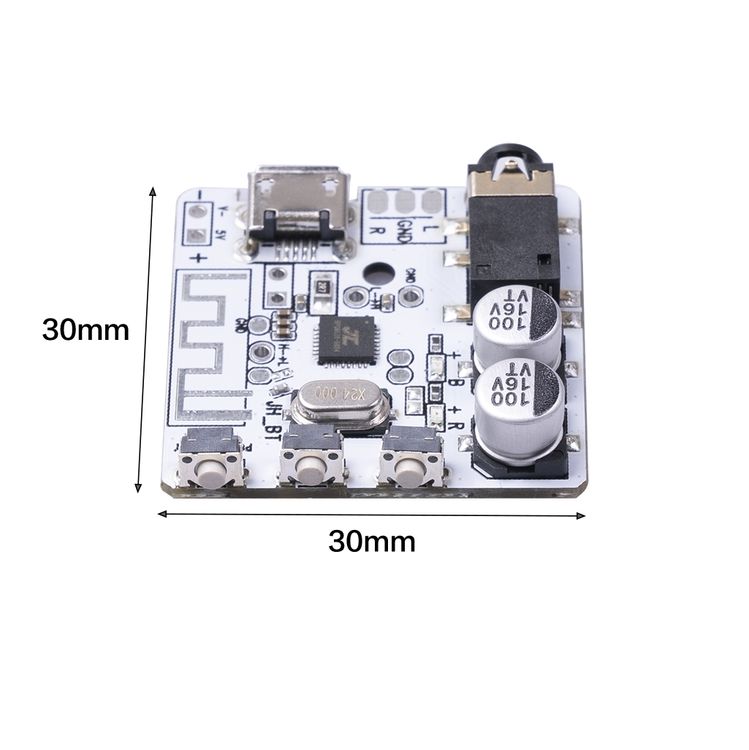

10 Dimensions: 30mm x 30mm

Additional Information

Weight & Size

Weight: 0.019kg
Size: 15cm x 12cm x 1cm

SKU: A0100024545 Category: Tag: Condition: New
