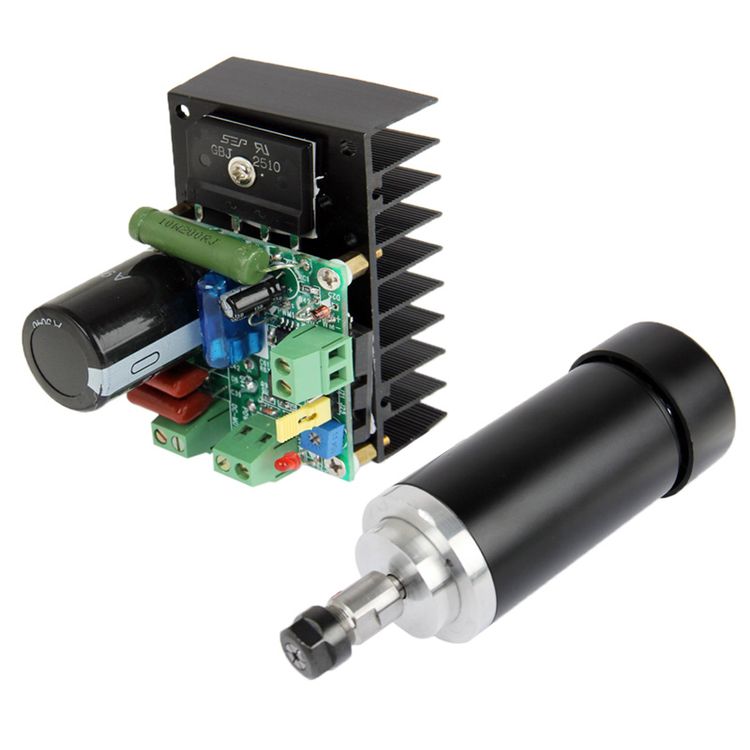

400W CNC Spindle Motor Kits PWM Speed Controller With Mount Bracket


R2666

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1) Description:
High-speed 400W air-cooled motor, can used to make DC spindle, Small noise, Strong strength. Motor modified the clamping device and adopt CNC lathe machining.

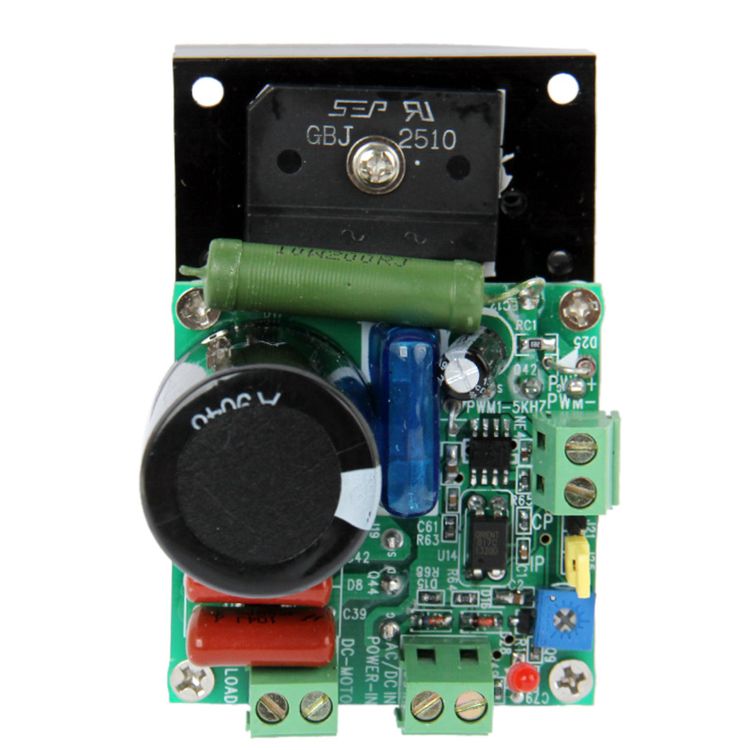

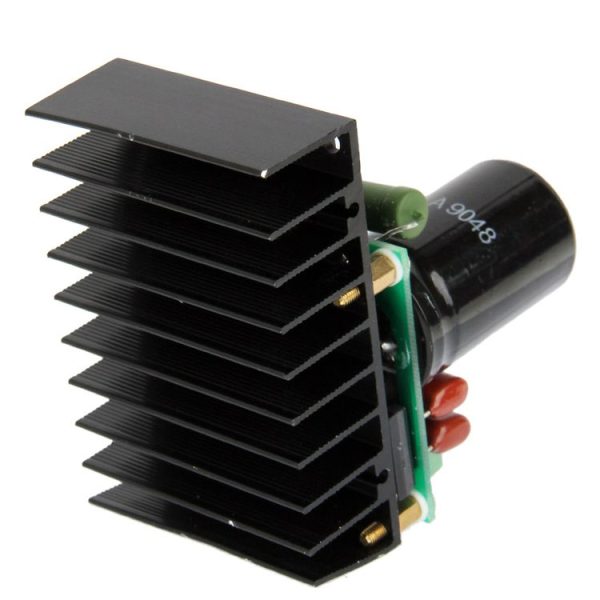

2) PWM Speed controller:
Support AC and DC input
DC Input: DC 15-160V
AC Input: 12-110V input
Support Current: 10 A
PWM input: level 3.5-12V VPP
Frequency: 1K-10KHZ(Particularly suitable for MCH3 spindle speed control.)

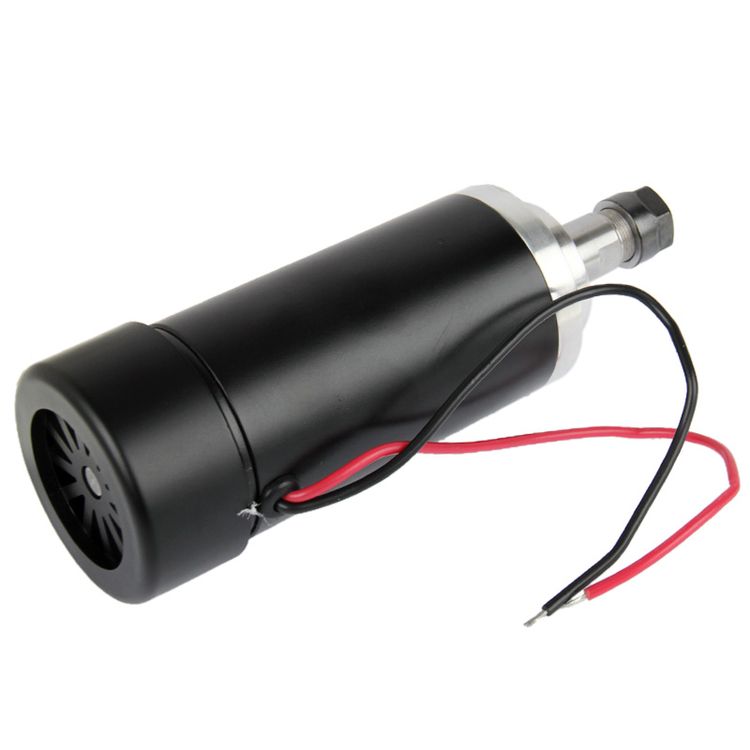

3) Spindle Motor Technical parameters:
Spindle motor: New DC motor
Power: 400W
Operating voltage 12-52VDC
Maximum working current: 9A
Maximum Power: 0.4KW
Rotation Speed: 3000-12000r / min.
Torque: 350mN.m
Insulation resistance:> 2 megohm
Dielectric strength: 400V
Diameter: 52mm
Motor Overall length: 170mm (includes gripping parts and motor)
Axis collet Length: 37mm
Diameter of ER11-A clamping holder:16mm
The spindle runout: about 0.01-0.03.
Weight: 1.5kg
Can be used for engraving metal or nonmetal materials.

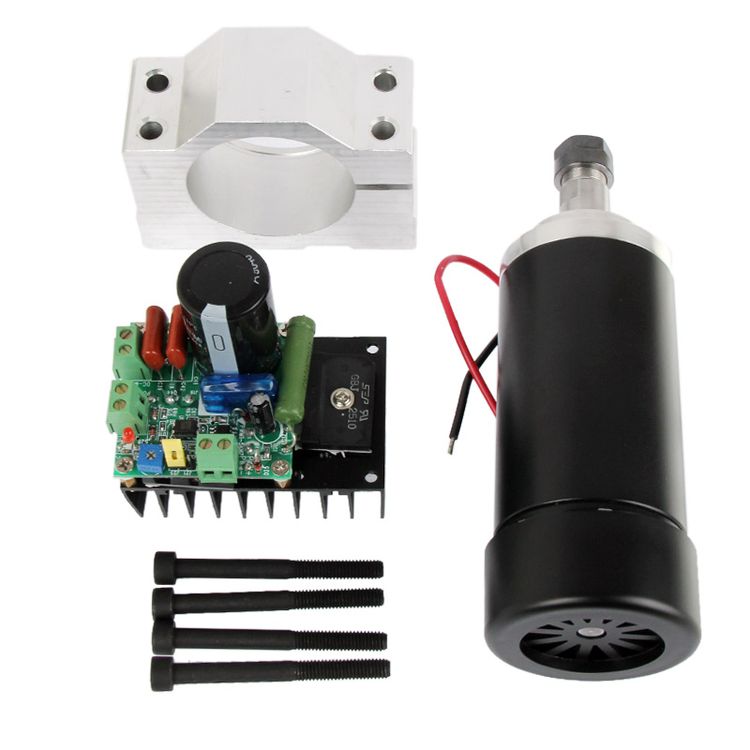

4) Package includes:
1 x 400W Spindle Motor
1 x PWM Speed controller
1 x Mount bracket
4 x Screws

Additional Information

Weight & Size

Weight: 1.500kg
Size: 17cm x 10cm x 7cm

SKU: C0100013777 Category: Condition: New
