Overview

About The Product

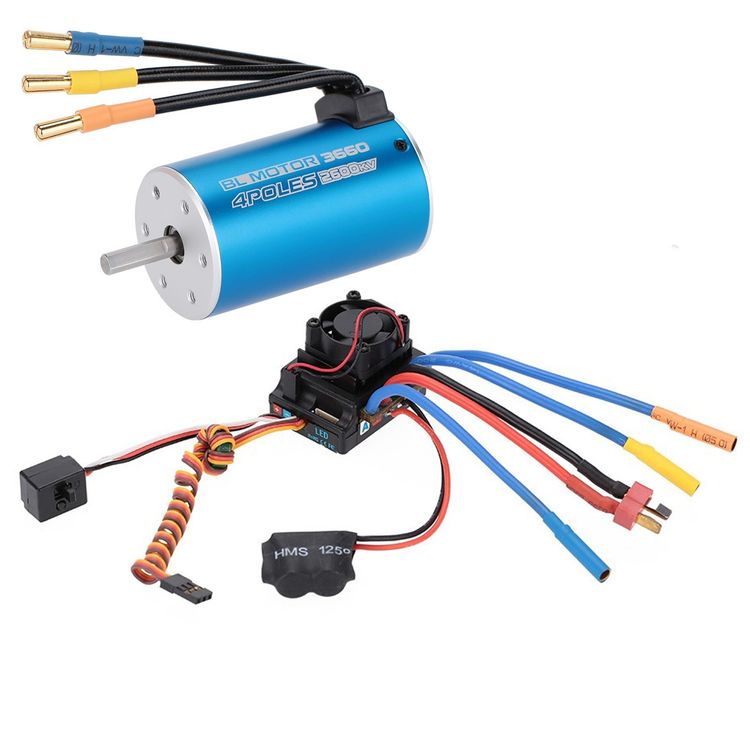

The set includes 3660 2600KV 4P sensorless brushless motor and 80A brushless ESC. The motor adopts high performance temperature-resistant magnetic steel and imported high speed bearing, which is suitable for providing power for 1/8, 1/10 off-road truck RC car. And the ESC is built with the highest quality components to ensure true-to-rating current handling and high efficiency operation. It features enhanced throttle response,excellent acceleration, strong breaks and throttle linearity, which is suit for 1/8, 1/10 RC Car.

Motor
1. Removable/Replaceable rotor
2. High RPM ABEC5 oversized bearings
3. 4 pole 12 slot hi-torque motor design
4. Stator – super thin (0.2mm) laminations
5. High purity copper windings efficiency
6. CNC machined 6061 T6 billet aluminum heatsink can
7. Precision engineered for maximum energy conversion
8. Precision balanced rotor,smoothness for best reliability and maximum RPM
9. Connector: 4.0mm banana bullet plug

Electronic Speed Controller
1. Using both of LCD and LED program card to make adjustments
2. Using advanced software interface to set up or update the software
3. Enhanced throttle response, excellent acceleration, strong brakes and throttle linearity
4. Multiple protection features: Low voltage cut-off protection, over-heat protection and throttle signal loss protection

Additional Information

General

Material: Aluminum
Length: Motor Length: 60mm
Max Voltage: 18V
Max Current: 66A
Watts: 1200W Max
Shaft Diameter: 5mm
Shaft Length: 17mm
KV: 2600KV
Poles: 4
Recommend Model: 1/8 RC Car, 1/10 RC Car
Product Size: Motor Diameter: 36mm, 43 * 31 * 32mm(ESC with fan)

ESC

Continuous Current: 80A
Burst Current: 480A / 10sec
Battery: 2-4s LiPo / 4-12s NiMh
Voltage: 5.3V / 5A(Switch Mode)
Power Supply Plugs: T Male
Motor Plugs: Female 5mm bullet connector

Weight & Size

Weight: 0.395kg
Size: 16cm x 10cm x 6cm

SKU: B0100049919 Category: Tag: Condition: New
