3650 4370KV 4P Sensorless Brushless Motor with 45A Brushless Electric Speed Controller for 1 / 10 RC Car Truck


R1105

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

About The Product
The set includes a 3650 4370KV 4P Brushless Motor and a 45A brushless Electric Speed Controller(ESC), which is perfect for the 1/10 RC Off-Road Car. This 3650 4370KV 4P Brushless Motor is built from the best materials available, and is designed to provide both quality and performance at an affordable price. And it is with high quality aluminum alloy parts that are produced on the latest CNC milling machines. Additionally, the 45A brushless ESC features enhanced throttle response,excellent acceleration, strong breaks and throttle linearity.

Motor
1. 4 poles Hi-torque motor design.
2. CNC machined 6061 T6 billet aluminum heat sink can.
3. High purity copper windings maximizes efficiency.
4. High RPM ABEC5 oversized bearings.
6. Universal fits 1/10 brushless cars-multi-mounting system for M3 screws.
7. Precision balanced rotor, smoothness for best reliability and maximum RPM.
8. Removable/replaceable.
9. Stator – Super Thin (0.35mm) laminations.
10. Precision engineered for maximum energy conversion.

Electric Speed Controller
1. Compatible with sensorless brushless motors.
2. High anti-interference capability.
3. Using advanced software interface to set up or update the software.
4. Super smooth and accurate throttle linearity.
5. Fast response to throttle input.
6. Multiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.

Additional Information

General

Material: Metal

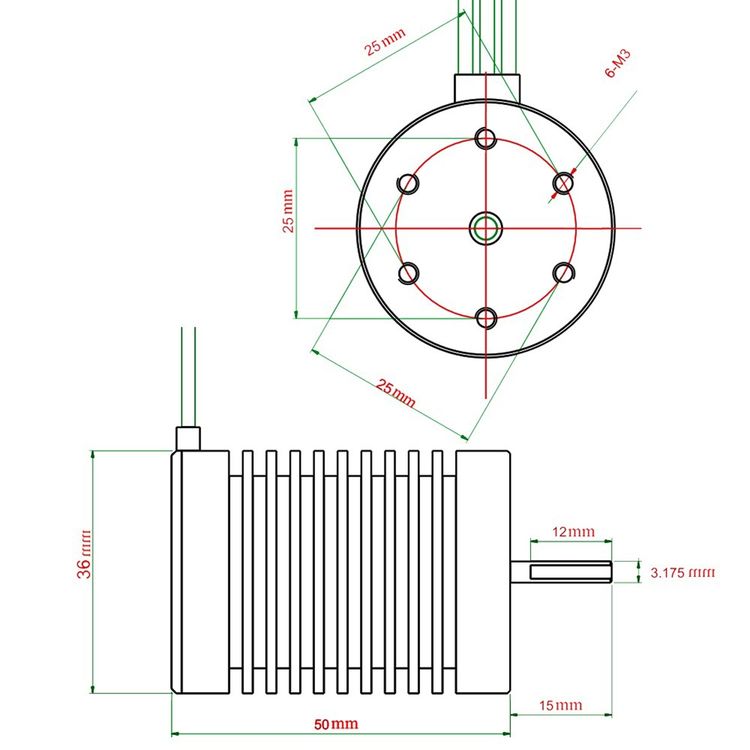

Length: Can Length: 50mm, Shaft Length: 15mm
Max Voltage: 7.4V(2S)-11.1V(3S)
Max Current: 66A
KV: 4370KV
Poles: 4
Recommend Model: 1/10 RC Car
Product Size: Electric Speed Controller: 45*35*35mm(with out fan)
Weight: 146g+76g

ESC

Continuous Current: 45A
Burst Current: 260A/10sec
Battery: 2-3 Cell Lipo / 4-9 Cell NiMh
SBEC Output: 5.8V/3A
Power Supply Plugs: T Male
Motor Plugs: Female 4mm Bullet Connector

Weight & Size

Weight: 0.305kg
Size: 11cm x 9cm x 6cm

SKU: B0100049925 Category: Tag: Condition: New
