3.5 inch LCD TFT Touchscreen Display Touch Shield with Stylus Pen for Raspberry Pi


R267

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

About the Product

This 3.5 inch touch screen module is designed especially for Raspberry Pi, using the latest Linux Core system (vision 3.18.9), the latest Raspberry Pi official UI desktop file system and the fastest SPI transmission data, an ideal alternative solution for HDMI monitor and convenient Men-Machine interface for Raspberry Pi, combined with the portable power, DIY anywhere anytime.

Features

1. LCD Interface: SPI.
2. Touch Screen Controller: XPT2046.
3. Backlight: LED.
4. LCD Type: TFT.
5. Resolution: 320*480 DOTS.
6. Core System: vision 3.18.9.
7. SPI Speed: 32MHz.
8. Color Levels Index: 65536.
9. Power Consumption/Backlight Current: TBD.
10. Supports Raspbian system, enables your system to:
– Play videos (supports multi formats, MP4 and so on).
– Take photos by touching (up to 17 camera modes).
– Support software keyboard (system interaction without keyboard/mouse).
– Support driver is installed automatically.

Additional Information

General

Model: C0278

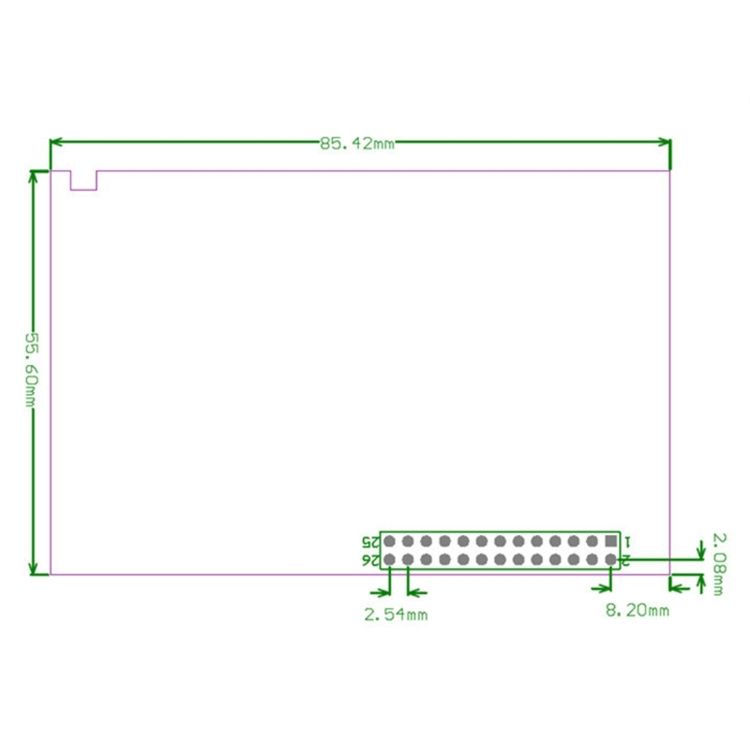

Size: 8.6*5.6*2cm
Weight: 51g
LCD Interface: SPI
Touch Screen Controller: XPT2046
LCD Type: TFT
Resolution: 320*480 DOTS
Core System: Vision 3.18.9
SPI Speed: 32MHz
Power Consumption/Backlight Current: TBD

Package Include

Package Contents: 1 x LCD Touchscreen, 1 x Stylus Pen

Weight & Size

Weight: 0.090kg
Size: 12cm x 7cm x 3cm

SKU: A0100024385 Category: Condition: New
