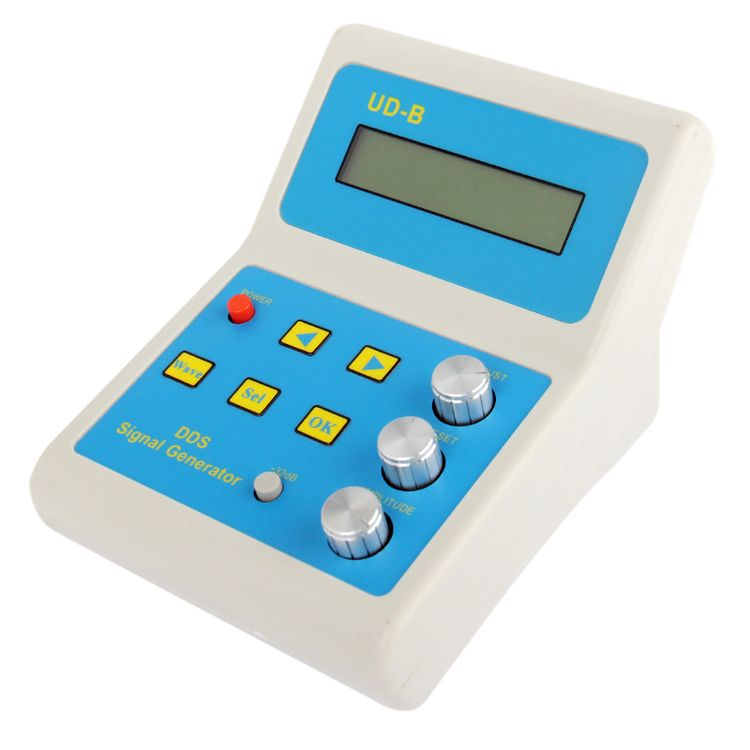

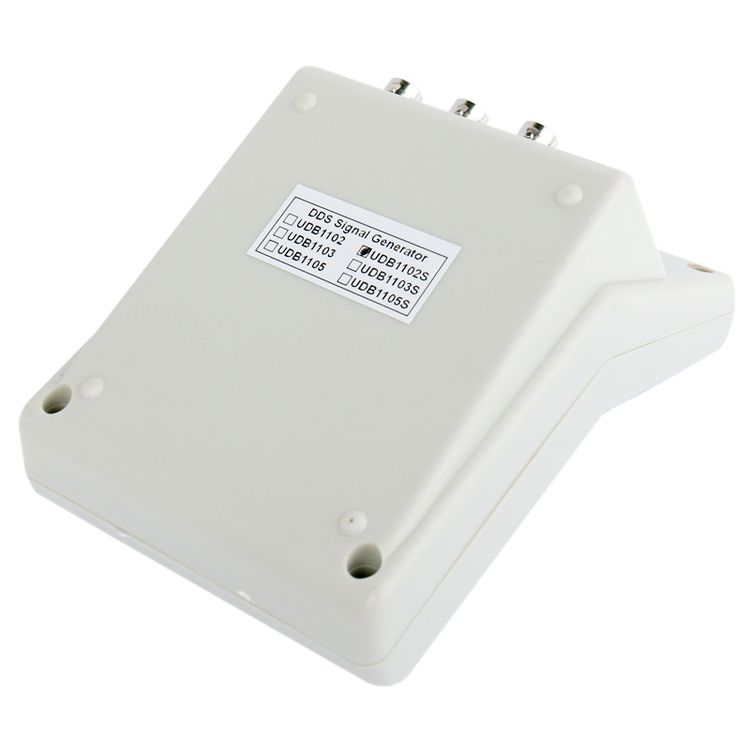

2MHz DDS Sweep Function Signal Generator UDB1102S Meter
R1482
In Stock at Supplier
 |  |  |  |  |  |  |  |
| Didn't find what you're looking for? Take a look at these Similar Products | |
| Got questions or need assistance? Please take a look at our Frequently Asked Questions or Contact Us |
Overview
1) Description:
– 100% Brand New
– This is a full DDS signal source, the use of DC5V power supply can output sine wave, square wave (1% -99% duty cycle can be adjusted), triangle, and sawtooth waveforms and other functions, the maximum output of up to 10Vpp, frequency from 0.01Hz-2MHz (also optional 3MHz, 5MHz), a resolution of 10mHz, both TTL sync output and 60MHz frequency counter with three kinds of functions in one.
– UDB1100 series is the original SG1000 series of upgrades to increase the beautiful plastic case, upgrade to the BNC input connector output interface, while increasing the output attenuation switch (-32dB, about 40 times), making this instrument a minimum capacity of 10mV output signal about
– It’s the ideal equipment of electronic engineer, laboratory, production lines, the teaching and scientific research.
2) Features:
– High frequency resolution: 0.01Hz
– High frequency accuracy: ± 20ppm
– Low distortion: <1%
– Square wave duty cycle of 1% to 99% accuracy adjustable
– Triangular modulation account space than the output of two kinds of sawtooth after
– variable DC level control
– External Frequency Measurement
– Preset frequency stored, transferred functions

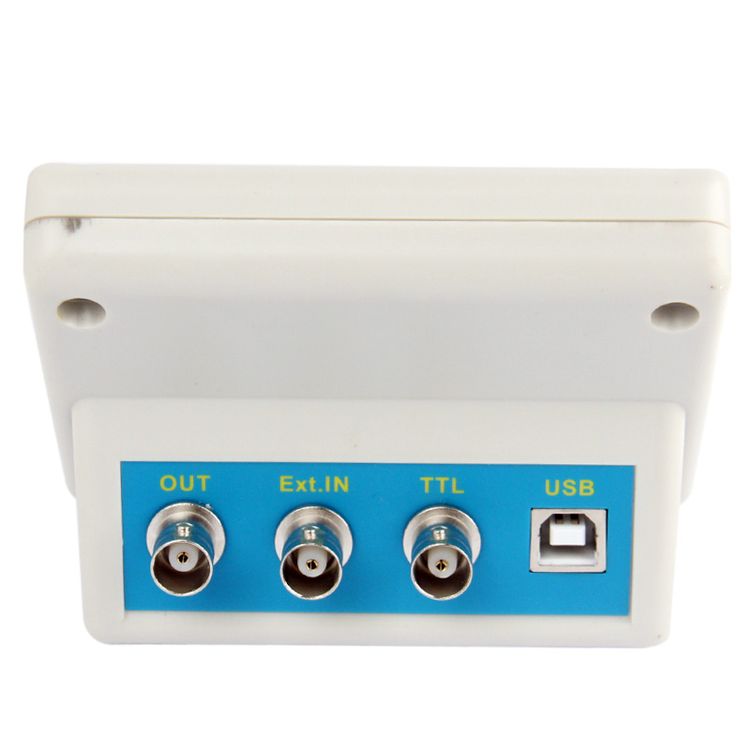

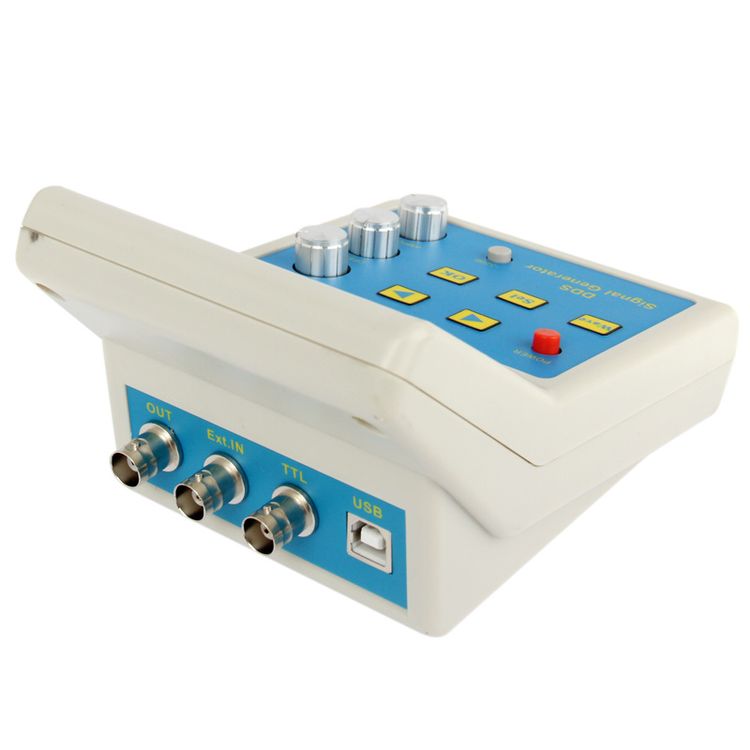

– Interface: Function of signal output (main output), TTL output, external count input
3) Specification:
– The main output waveform: sine wave and square-wave, triangle wave, sawtooth wave
– Maximum output amplitude: 10Vpp (no-load)
– Output impedance: 50 ω + 10%
– Dc bias: + 5V (no-load)
– Range: 1% – 99% (square-wave)
– Display: LCD1602
– Output frequency range:
– sine wave: 0.01Hz-2MHz
– Square-wave: 0.01 Hz – 1MHz (the valid range)
– Triangle wave: 0.01 Hz – 1MHz (the valid range)
– Sawtooth wave: 0.01 Hz ~ 1MHz (the valid range)
– Resolution: 0.01 Hz
– Frequency stability: + 1 x 10-6
– Frequency error: + 5 x 10-6
– Sine wave distortion degree: < 1% (benchmark frequency 1kHz)
– Triangle wave linearity: 0.01 Hz ~ 100 KHZ 98%; 95%, 100 KHZ ~ 1MHz;
– Square-wave rising and falling time: < 30ns
– TTL output: TTL level: Vp – p. 3 p, Take 20TTL load load capacity
– The external measurement functions:
– Frequency range: 60MHz 1Hz
– Vpp – signal amplitude: 0.5 20Vpp
– The count range: 0-4294967296
– Storage and append the: has a 10 groups with v function parameters storage

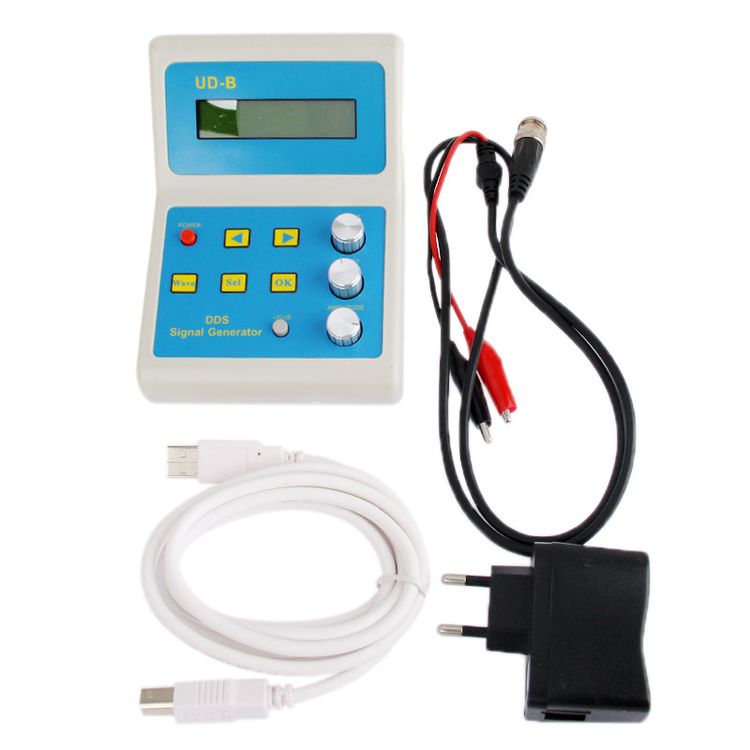

3) Package Includes:

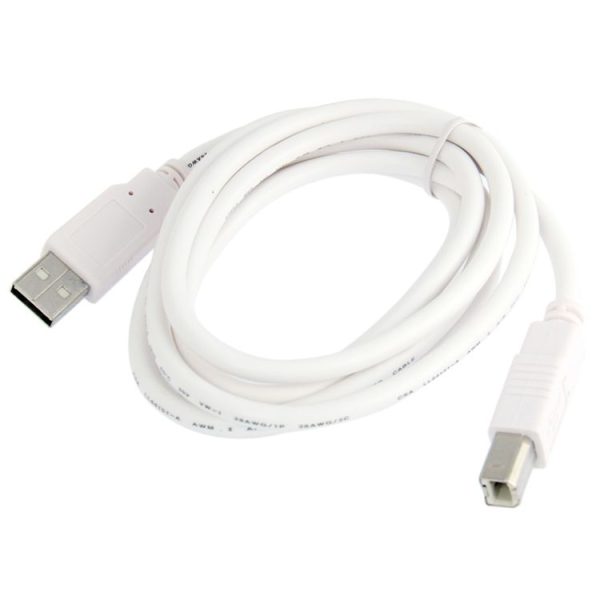

– 1 x 2MHz DDS UDB1102
– 1 x Signal Output Cable
Additional Information
Weight & Size
Weight: 0.550kg
Size: 25cm x 16cm x 10cm
