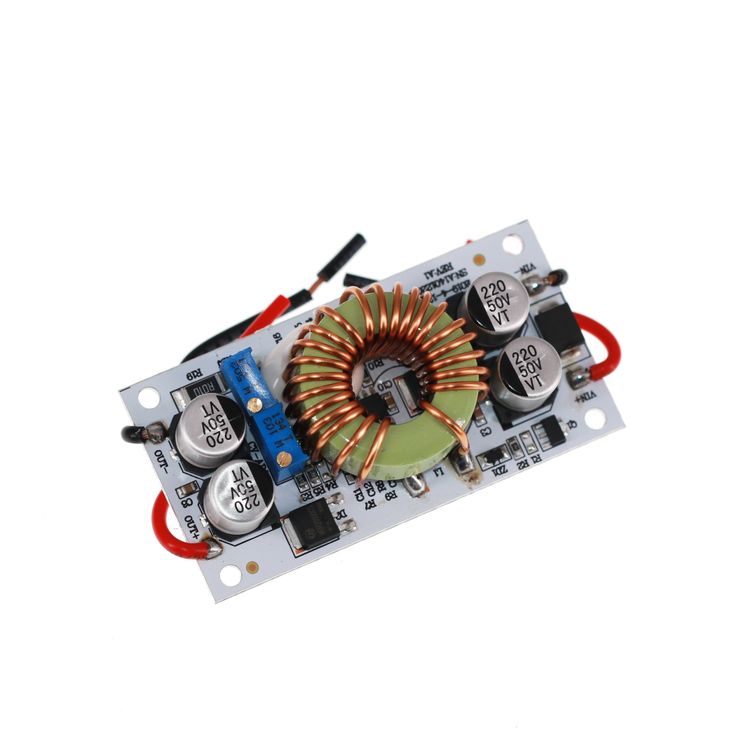

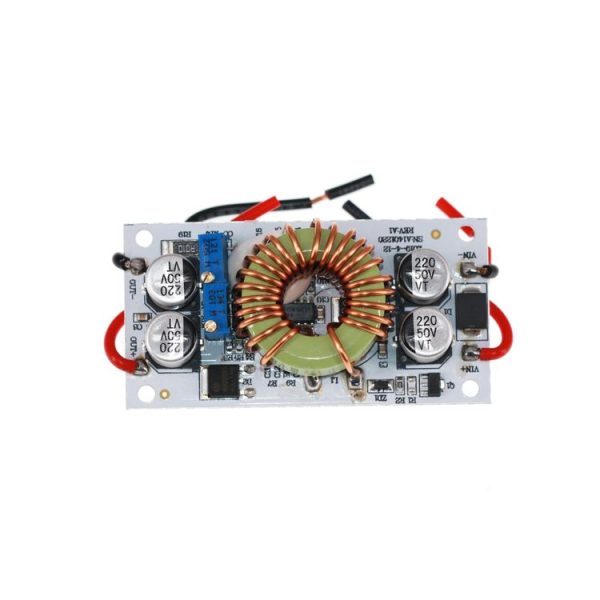

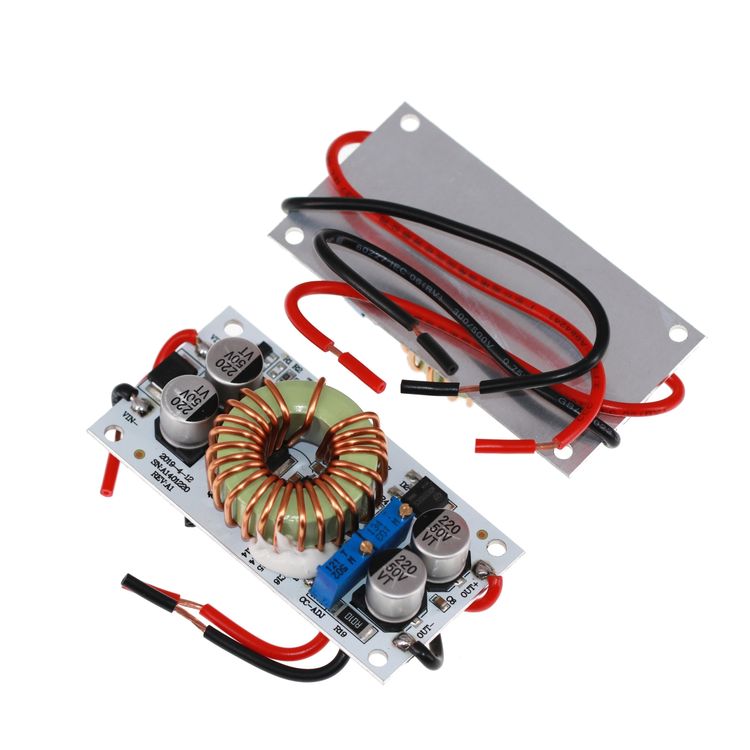

250W 10A Aluminum Substrate Power Supply LED Boost Constant Current Module


R81

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. Module characteristics: non-isolated boost module (BOOST)
2. Input voltage: DC8.5V-48V
3. Input current: 10A (MAX). Please strengthen heat dissipation if it exceeds 8A.
4. Quiescent current: 10mA (when 12V rises to 20V, the higher the output voltage, the quiescent current will increase)

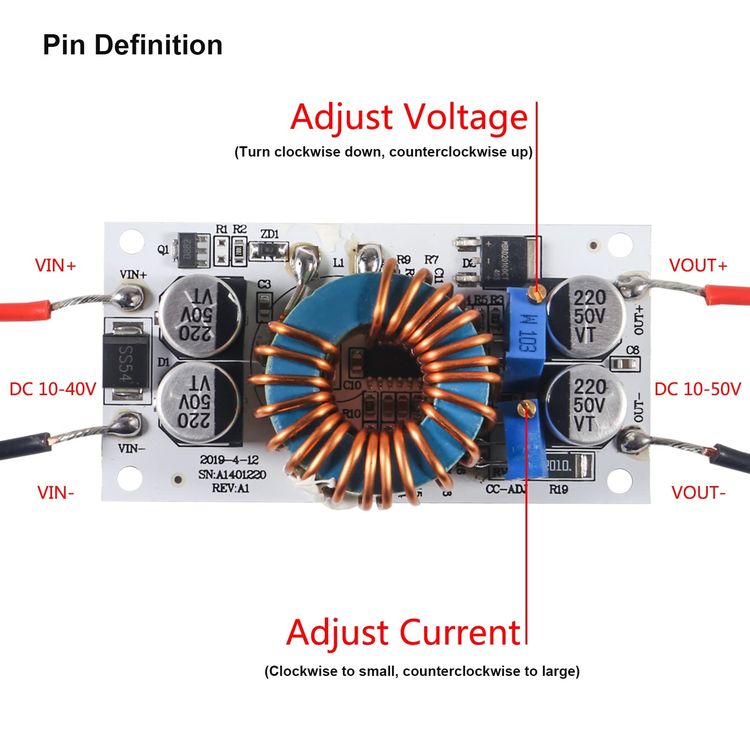

5. Output voltage: 10-50V continuously adjustable
6. Constant current range: 0.2-8A
7. Temperature: -40 to +85 degrees Celsius (the ambient temperature is too high, please enhance heat dissipation)
8. Working frequency: 150KHz
9. Conversion efficiency: up to 96%
10. Overcurrent protection: Yes
11. Input reverse connection protection: Yes
12. Installation method: 4 3mm screw holes
13. Wiring method: Wiring output
14. Module size: 70mm long, 36mm wide, 13mm high
15. Weight: 50 grams
Application:
1. DIY a regulated power supply, the input is 12V, and the output can be adjusted from 12-50V.
2. Power your electronic equipment and set the output value according to your system voltage.
3. As a car power supply, power your laptop, PDA or various digital devices
Product Supply.
4. DIY a high-power notebook mobile power supply: equipped with a large-capacity 12V lithium battery pack, your notebook can shine wherever you go.
5. Solar panel voltage stabilization.
6. Charge batteries, lithium batteries, etc.

Additional Information

Weight & Size

Weight: 0.084kg
Size: 10cm x 5cm x 2cm

SKU: A0100024550 Category: Condition: NewOrigin: CN
