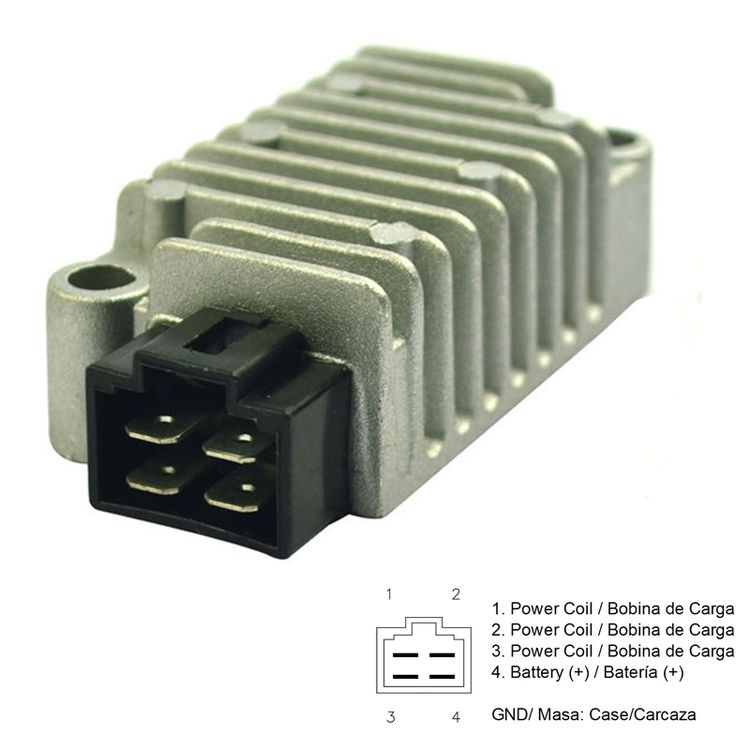

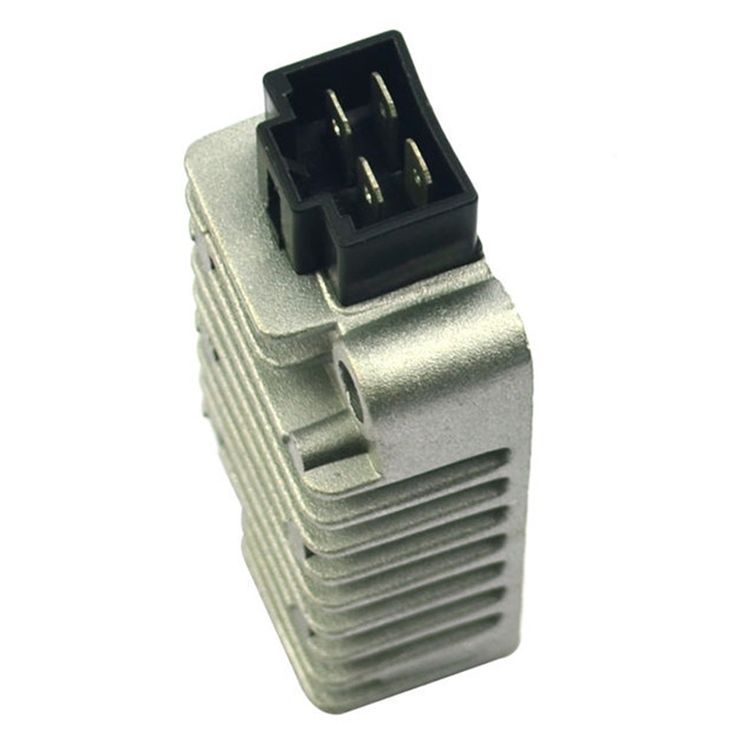

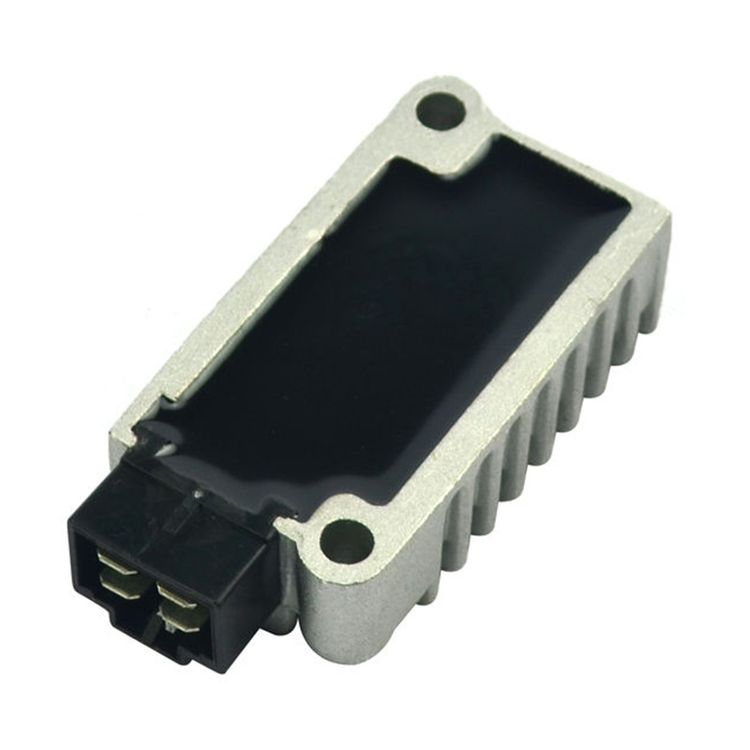

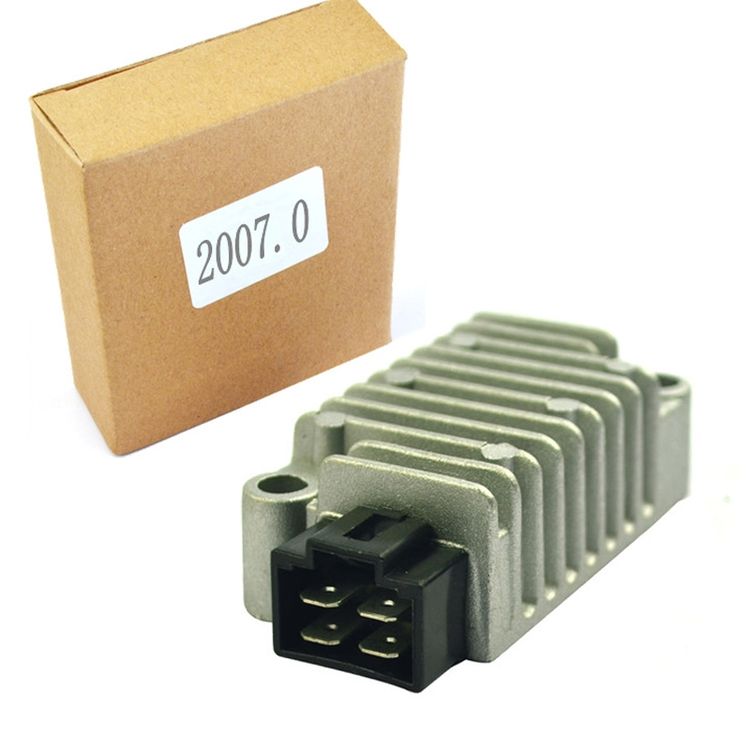

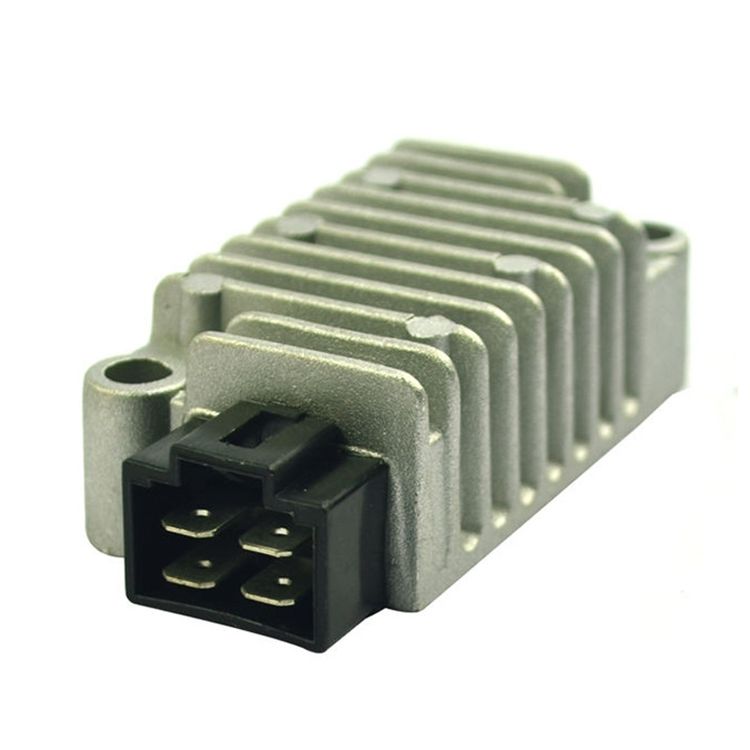

2007.0 Motorcycle Rectifier For Yamaha XV110 / TDM 850 XJ600 XT225


R323

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. Weight: 130G
2. Output voltage: 14.5V
3. Output current: 35A
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.
Applicable models:
For Rbi GPR 2T 125 00M12502316
For Kawasaki BN Eliminator 125 2001 2009 21066-1108
For Kawasaki KL Super Sherpa 250 2000 2010 21066-1108
For Reemplazo Shin Ngen SH629A-12
For Yamaha FZR 600 1990 1993 3TJ-81960-02-00
For Yamaha RD LCF 350 1986 3TJ-81960-02-00
For Yamaha RD LC 350 1991 1992 3TJ-81960-02-00
For Yamaha SRX 700 1998 1999 8DF-81960-00-00
For Yamaha SRX 600 1998 1999 8DF-81960-00-00
For Yamaha TDM 850 1991 1992 3TJ-81960-01-00
For Yamaha TT E 600 1994 2001 3TJ-81960-02-00
For Yamaha TT R / RE 600 1998 2004 3TJ-81960-02-00
For Yamaha TT K 600 1993 1996 3TJ-81960-02-00
For Yamaha TTR 225 1999 2006 3TJ-81960-02-00
For Yamaha TW 200 2001 2018 3TJ-81960-02-00
For Yamaha XC F 125 2000 2001 5AG-H1960-00-00
For Yamaha XJ S/N 600 1992 1997 3TJ-81960-02-00
For Yamaha XJ Seca II 600 1992 1996 3TJ-81960-01-00
For Yamaha XT 250 2008 2012 3TJ-81960-02-00
For Yamaha XT 225 2001 2007 3TJ-81960-02-00
For Yamaha XT Serow 225 1996 1997 3TJ-81960-01-00
For Yamaha XT E 600 1990 2002 3TJ-81960-02-00
For Yamaha XT Serow 225 1998 2000 3TJ-81960-02-00
For Yamaha XT K 600 1991 1993 3TJ-81960-02-00
For Yamaha XT Tenere 600 1986 1989 3TJ-81960-02-00
For Yamaha XTZ 660 1991 3TJ-81960-02-00
For Yamaha XTZ 750 1989 1992 3TJ-81960-02-00
For Yamaha XV Virago 250 1989 1992 3TJ-81960-02-00

Additional Information

General

Compatible with: Yamaha: XJ600, XT225

Weight & Size

Weight: 0.204kg
Size: 18cm x 8cm x 8cm

SKU: A0100014600 Category: Condition: NewOrigin: CN
