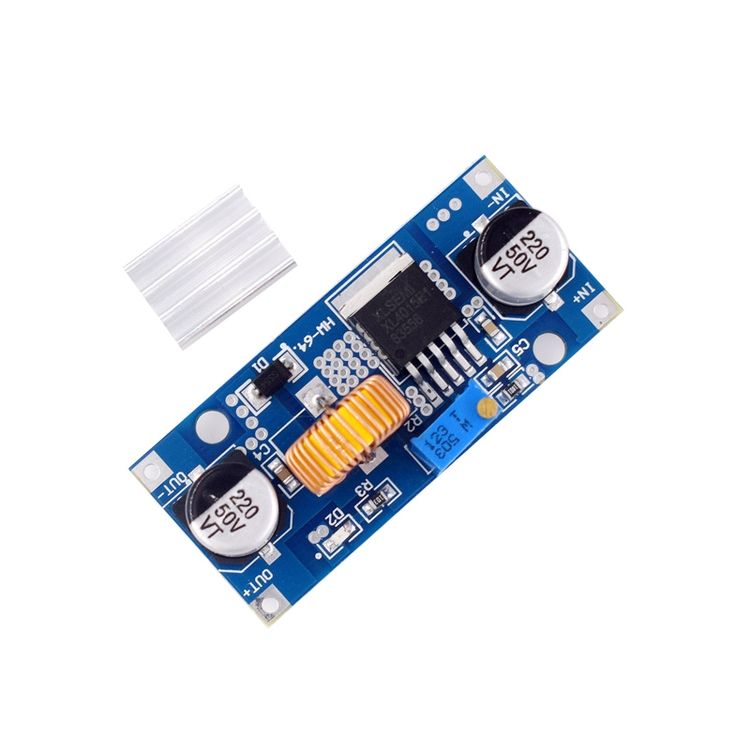

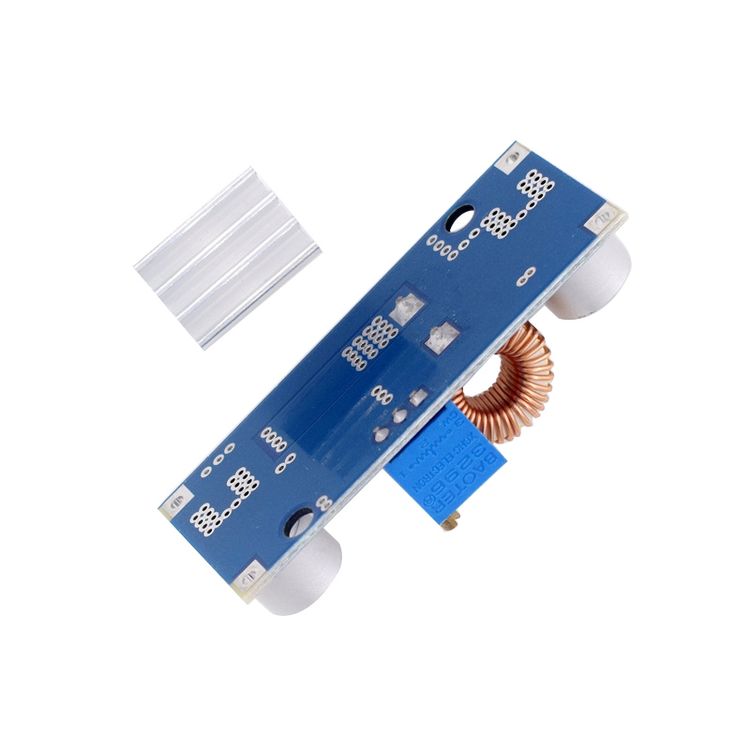

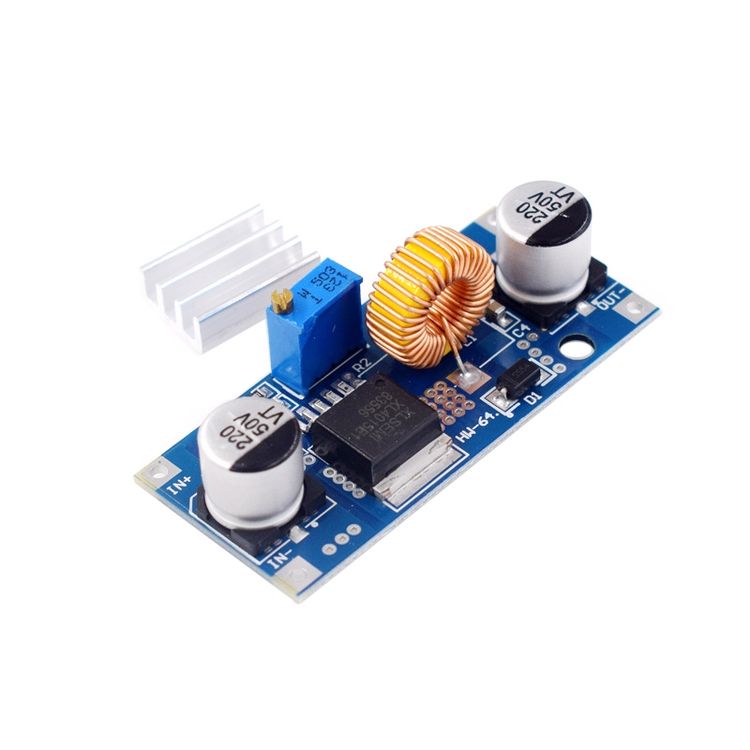

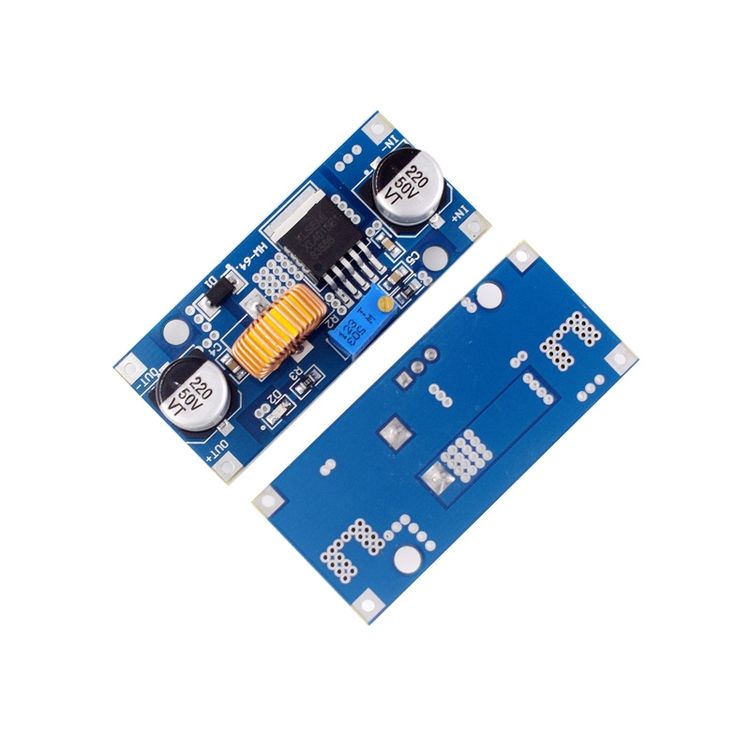

2 PCS HW-064 XL4015 DC Adjustable Step-Down Module


R87

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. Type: Voltage Regulator IC
2. Conversion efficiency: 96%
3. Features: High power, high efficiency, low ripple, with power indicator, free heat sink
4. Module nature: Non-isolated step-down module (BUCK)
5. Input voltage: 4-38V (please try not to exceed 38V for input)
6. Output voltage: 1.25-36V continuously adjustable
7. Output current: 0-5A
8. Output power: 75W
9. Working temperature: -40 to 85 degrees Celsius
10. Working frequency: 180KHz
11. Wiring mode: welding, V-IN is input, V-OUT is output
12. Load regulation rate: Input 24V, output 12V, measured when the load changes from 1 to 4.5A
13. Voltage adjustment rate: When output 12V, 4A, when the voltage changes from 18~32V
14. Short circuit protection: Limit current 8A
15. Over-temperature protection: Automatically shuts off the output after over-temperature
16. Installation method: 2 3mm screws
17. Application range: Step-down fields where the input voltage is higher than the output voltage, such as batteries, power transformers, DIY adjustable stabilized power supplies, 24V car pen meter power supplies, industrial equipment step-down, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, 36V to 24V, etc.
18. Dimensions: 54x23x15mm

Additional Information

Weight & Size

Weight: 0.024kg
Size: 15cm x 12cm x 1cm

SKU: A0100070130 Category: Condition: New
