Overview

About the product

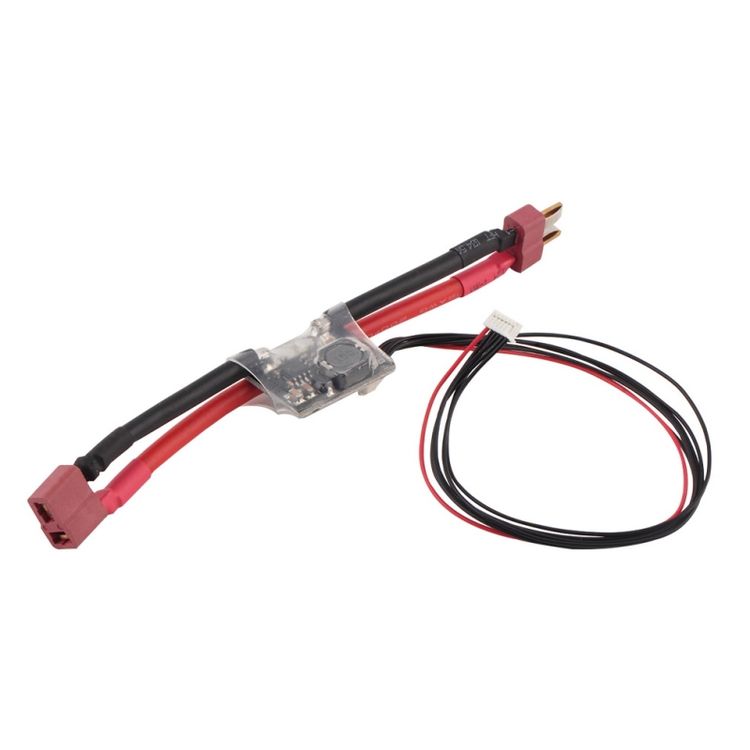

Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery.Special for APM2.5.2 APM2.6 Pixhawk flight controller.

Specifications

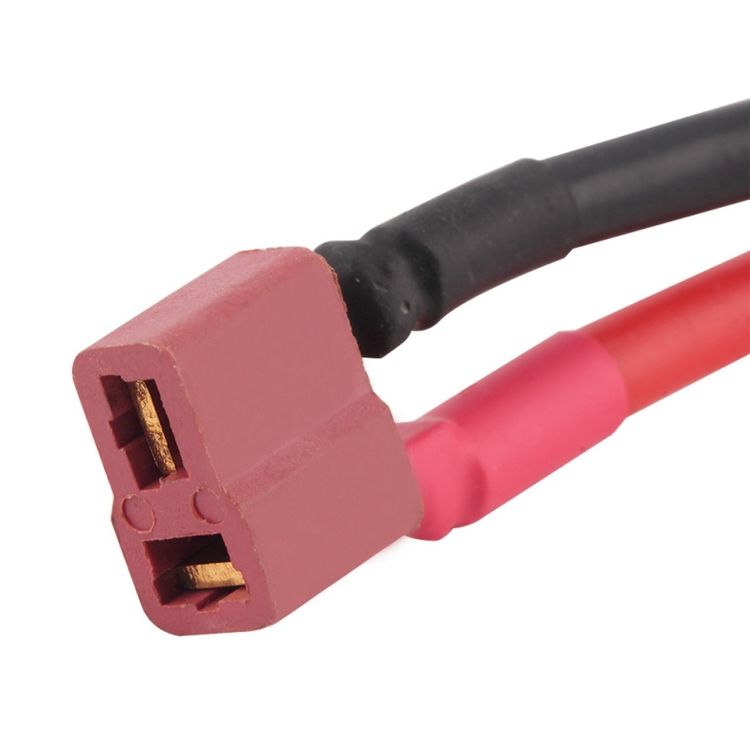

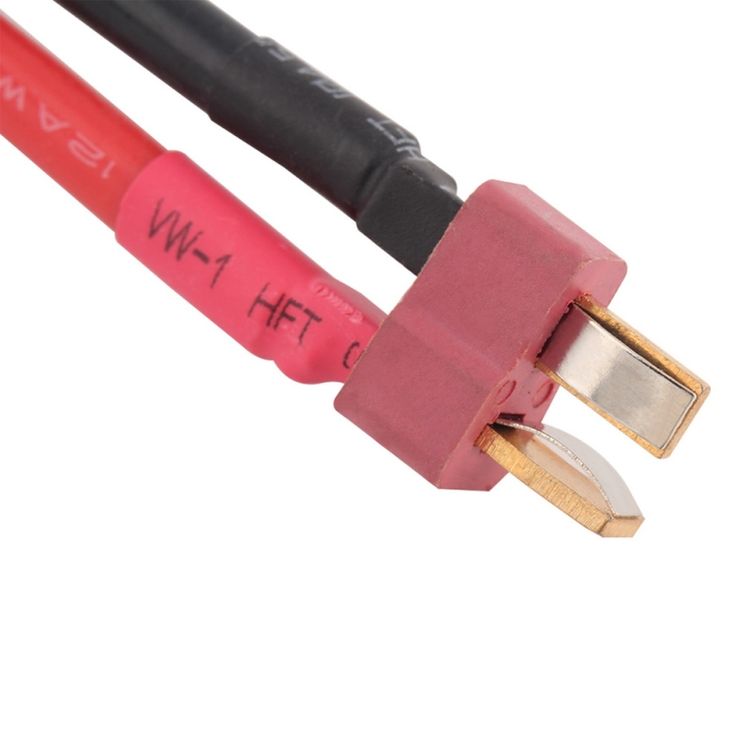

1. Deans Plug
2. Max input voltage: 30V
3. Max current sensing: 90A
4. Voltage and current measurement configured for 5V ADC

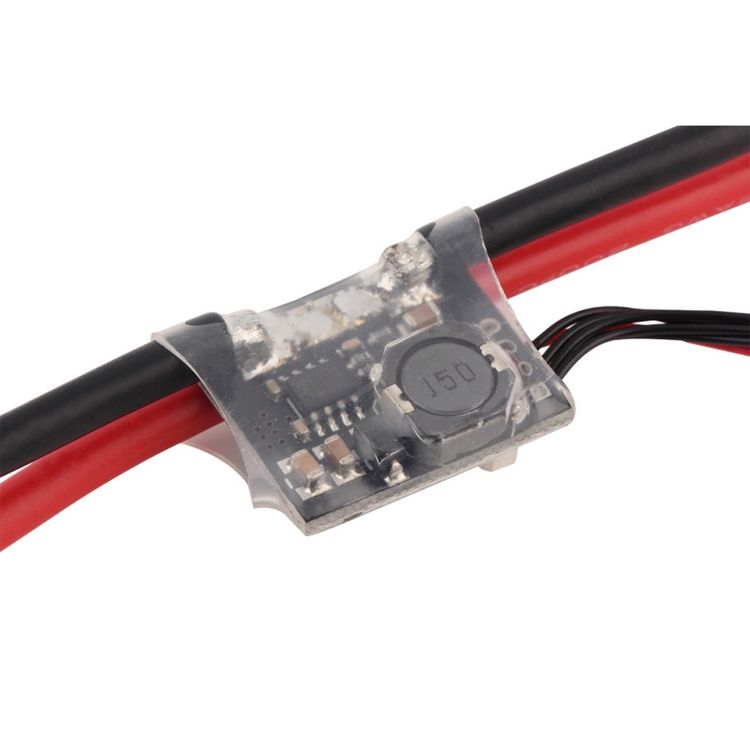

5. Switching regulator outputs 5.3V and 3A max
6. 6P molex cable plugs directly to APM/Arduflyer 2.5’s ‘PM’ connector
7. Note: The Power Module is only designed to power APM/Arduflyer, a RC receiver and accessories (GPS, Radio telemetry). It is not designed to power servos. Use your aircraft’s own ESC/BEC for that.
8. Color: black & red
9. Size: 137mm
10. Cable length: 192mm

Additional Information

Weight & Size

Weight: 0.058kg
Size: 14cm x 3cm x 2cm
