Overview

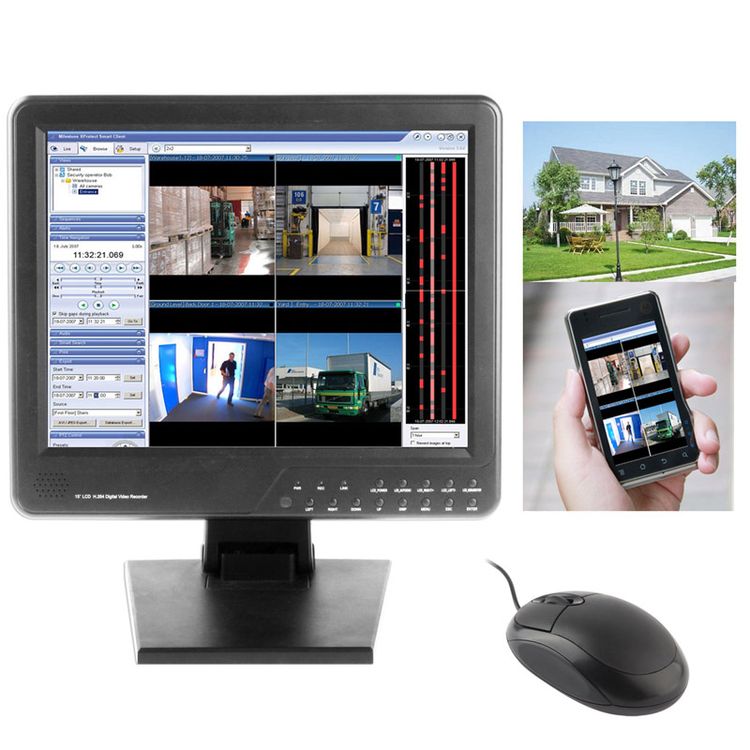

1) 19 inch LCD All-in-one standalone DVR
2) Adopts the standard H.264 compression technology, support 16channel recording, Network transmission and playback simultaneously
3) Support dual-stream transmission for all channels
4) Support phantoplex operation: live, record, playback, backup, network transmission, mobile phone surveillance
5) Support backup with USB Flash Disk, Movable hard disk, USB writer, Network
6) Support 1channel main output, 1channel SPOT output, 1channel VGA output
7) Support video channel secreted and S.E.Q for single channel
8) Support Digital Zoom and PIP preview
9) Support password function to avoid data modification
10) Support privacy mask and video mask alarm
11) Support Action with Alarm and pre-alarm recording function
12) Support Email alarm and mobile phone surveillance
13) Support PTZ preset and Cruise Control
14) Support Multi-language OSD
15) Central management software and Networked system management
Product Specifications:
1) Main Function: KT1916L
2) Operation System S: Embedded Linux OS
3) Video Compression: Main profile H.264

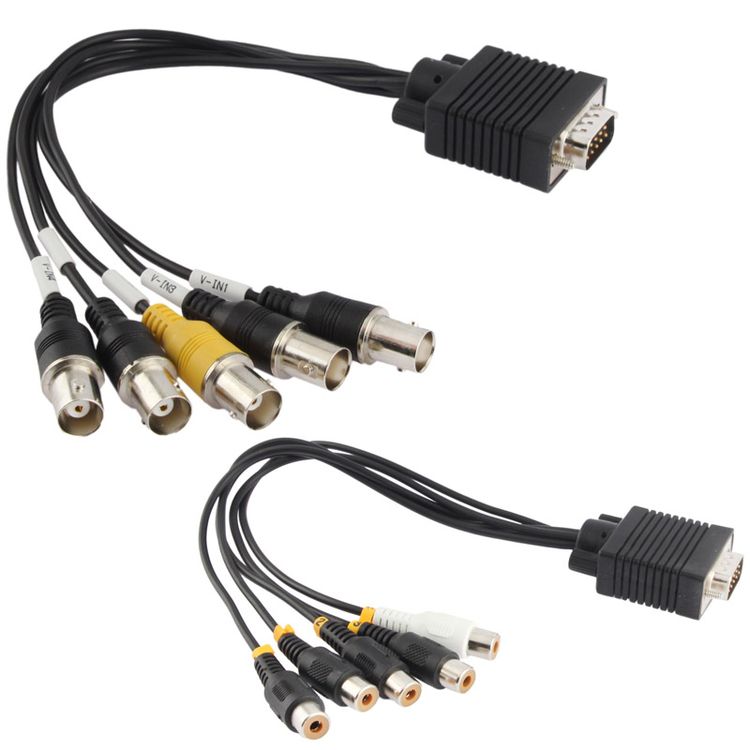

4) Video Input: 16channel BNC
5) Video Output: 1channel BNC, 1channel VGA(1280*1024)
6) Audio In/Output: 8channel RCA / 1channel RC
7) Intercom: 1 channel RCA in/output
8) Display Picture Division: 1/4/8/16CH
9) Digital Zoom, PIP: support
10) Triplex operation: Live, Record, Network, Playback, Backup, Mobile phone surveillance
11) Display Resolution: PAL:D1(704*576),NTSC:D1(704*480)
12) Recording Modes: Timer, Manual, Motion Detection, Sensor triggered
13) Total Recording Resource:
– PAL:D1@100fps,HD1@200fps,CIF@400fps, NTSC:D1@120fps, HD1@240fps,CIF@480fps
14) Recording Quality: Single channel adjustable
15) Recording Resolution: PAL: D1(704*576),HD1(704*288), CIF(352*288) NTSC: D1(704*480),HD1(704*240), CIF(352*240)
16) Playback: 1/4/8/16channel simultaneously(playback channel option)
17) Backup: USB Flash disk, Movable hard disk, USB Writer, Network
18) Recording file Play: Special player, Support AVI file format conversion

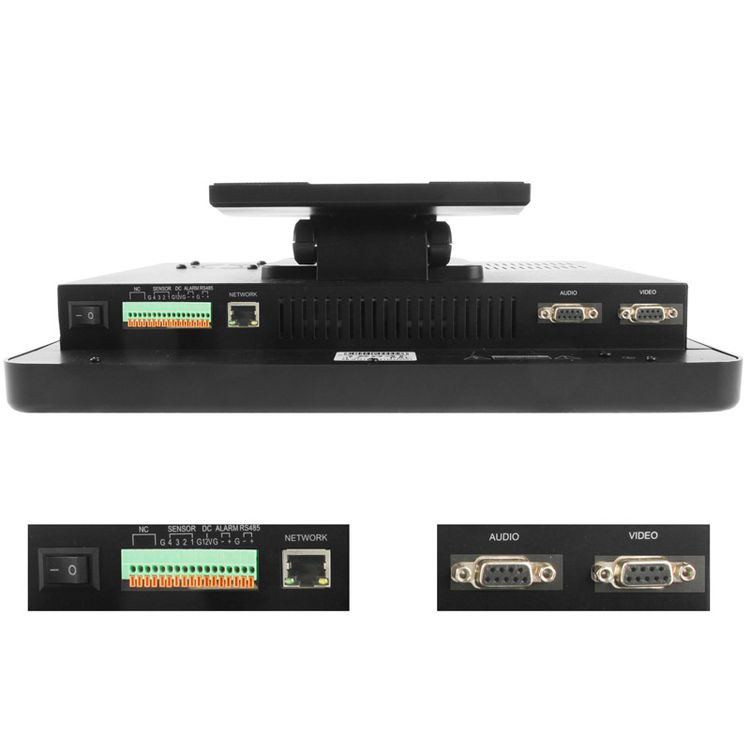

19) Alarm input/output: 16 channels input, 1 channels output
20) Pre-alarm Recoding: 10 Seconds
21) Action with Alarm: Support
22) Email Alarm: EMAIL Send pictures to the designated email
23) SPOT Alarm Pop-up: Support
24) Video Mask Alarm: Support
25) PTZ: Supports PTZ preset, Cruise and Control PTZ via PC
26) PTZ protocol: PELCO-D,PELCO-P
27) HDD: 2 SATA(one per 2TB storage)
28) HDD storage remark: Support
29) Network and Protocol: 1 RJ-45 10/100M,support TCP/IP, PPPOE, DHCP, DNS, DDNS, NTP, UPNP
30) IE Browser: Support
31) Client Software: Support
32) CMS: Support(One software for at most 100 DVRs )
33) Dual-Stream: Support (Main and secondary interchange)
34) Group play: Support multi-users online access
35) Privacy Mask: Support
36) S.E.Q: Support
37) Watermark Watermark: Support
38) Multi-language OSD: Support
39) Mobile Phone Surveillance: Support Windows CE, Symbian, iPhone, Blackberry OS
40) SDK Package: Available

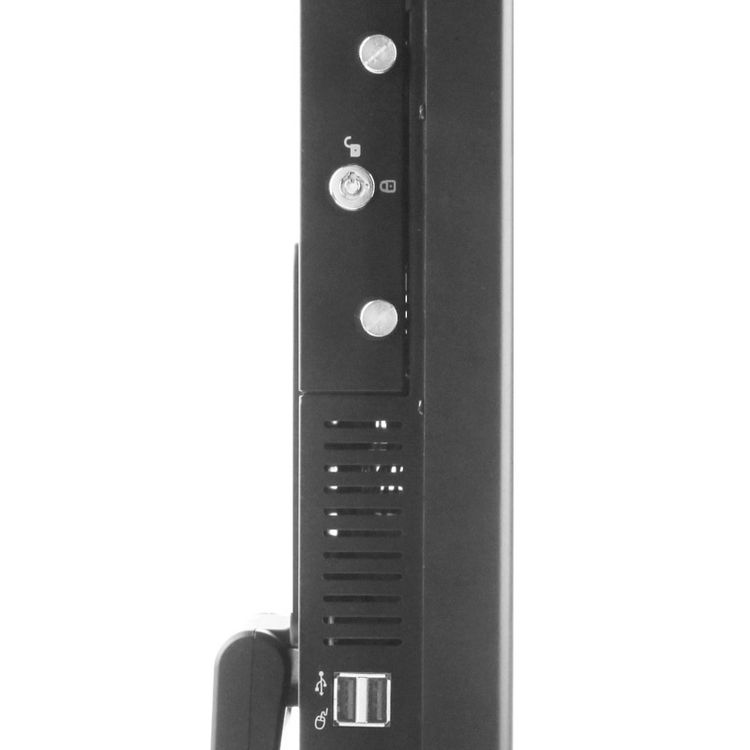

41) Mouse port: USB2.0
42) Backup port: USB2.0

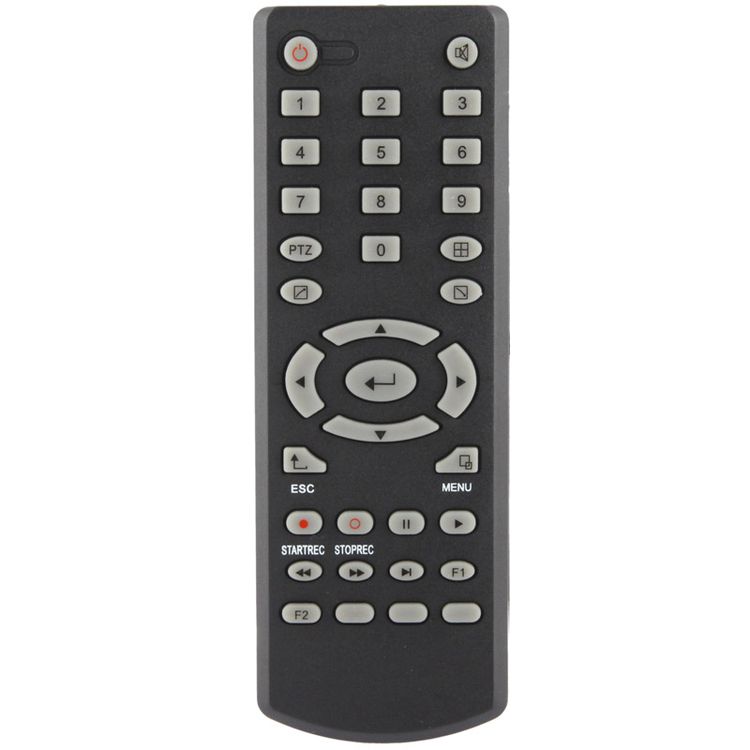

43) Remote Controller: Support
44) User Authority: Multi-level user authority distribution
45) System Date: Support Format Swift, DST
46) Power Supply: 12V/5A
47) Operating Temperature: 0℃-50℃
48) Operating Humidity: 10%-90%
Additional Information
Weight: 9.220kg
Size: 51cm x 40cm x 16cm
