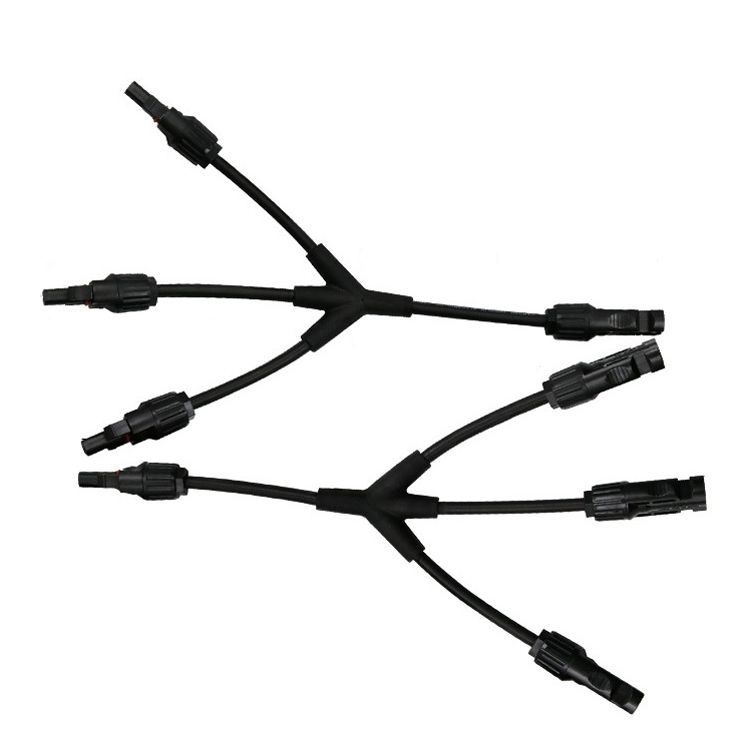

1 Pair MC4 Four-way Y Type MC4 Photovoltaic Connector Solar Branch Connector Solar Panel Male And Female Plug Accessories


R301

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. Material: PPO shell, inner core galvanized copper
2. Weight: 4-piece set is about 24 grams/set, three-way T-type about 103 grams/pair, three-way Y-type about 117 grams/pair, four-way Y-type about 172 grams/pair, five-way Y-type about 306 grams / Correct

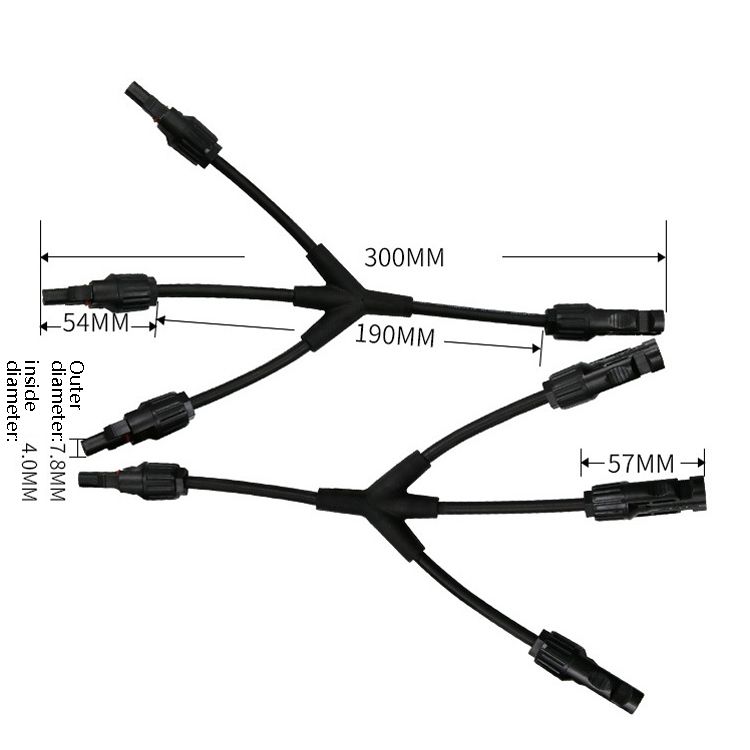

3. Size: 4-piece set is about 55.5×18.9mm, Tee T-type is about 107.8x19mm, Y-type Tee is about 300x57mm, Y-type four-way is about 300×54 mm, Y-type five-way is about 460mm long
4. Rated voltage: 1000V/DC
5. Test voltage: 6000V
6. Adapted wire diameter: 2.5-6.0 square millimeters
7. Waterproof rating: IP67
8. Wiring method: crimping
Features:

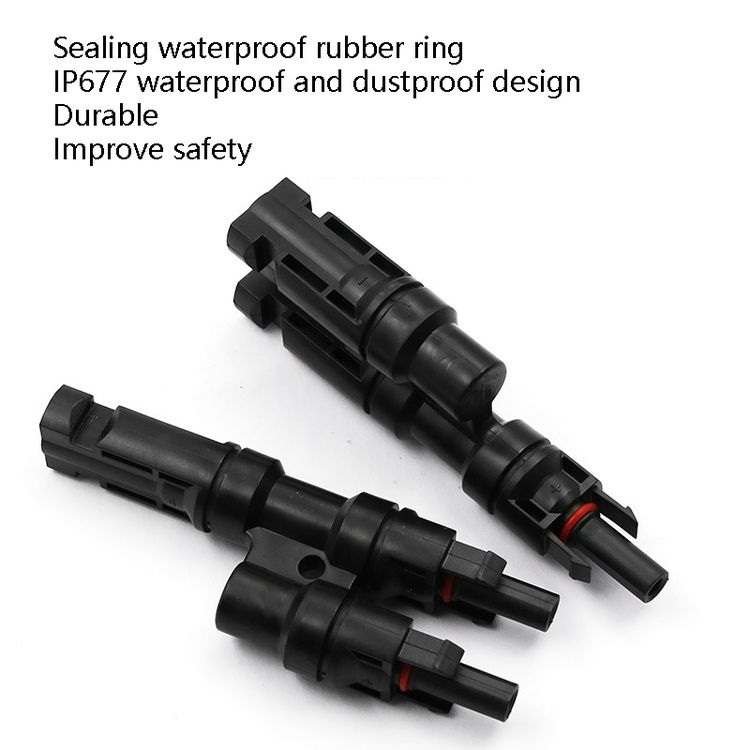

1. With sealed waterproof rubber ring, waterproof and dustproof, durable, and improve the safety of use

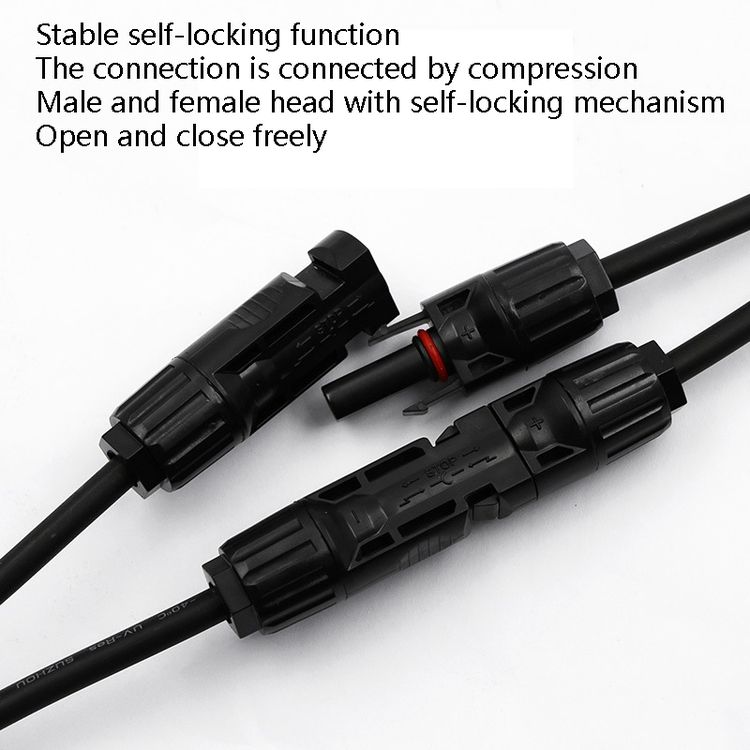

2. Stable self-locking function, the connection is connected by pressing, and the male and female heads have self-locking mechanism, which can be opened and closed freely

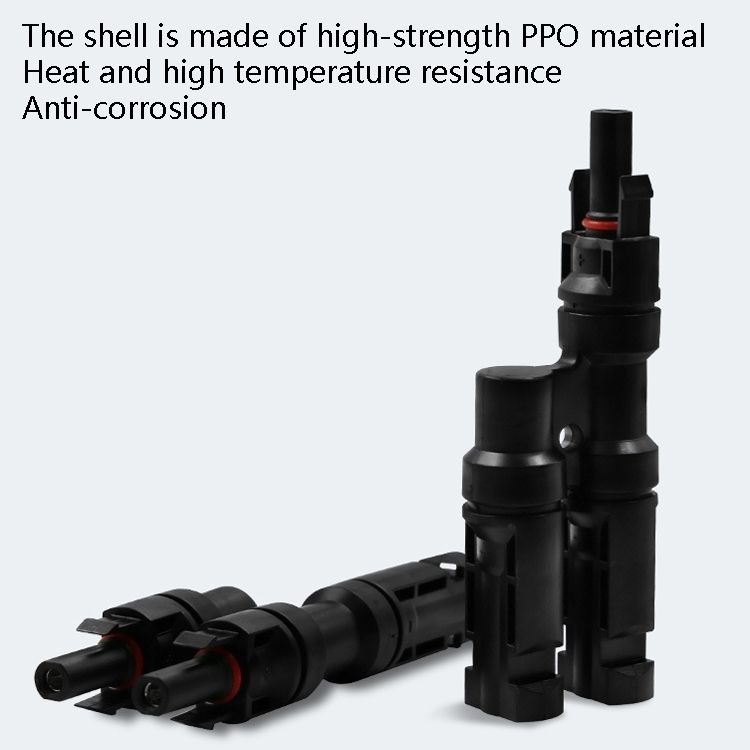

3. The shell is made of high-strength PPO material, heat-resistant, high-temperature, and corrosion-resistant

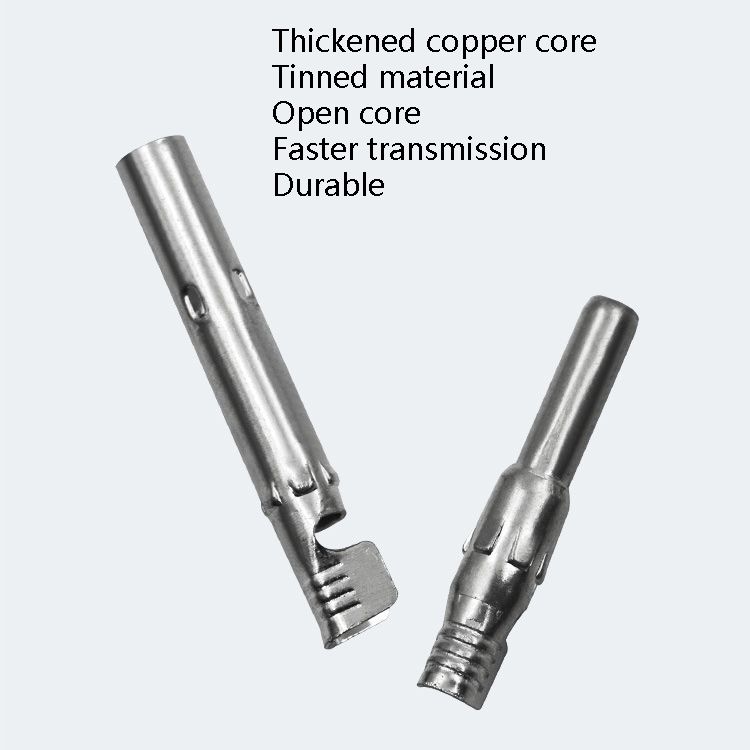

4. Thicker copper core, tin-plated material, open core, faster transmission
5. Insulation material, butt safe

Additional Information

Weight & Size

Weight: 0.204kg
Size: 32cm x 10cm x 3cm

SKU: A0100002672 Category: Tag: Condition: New
