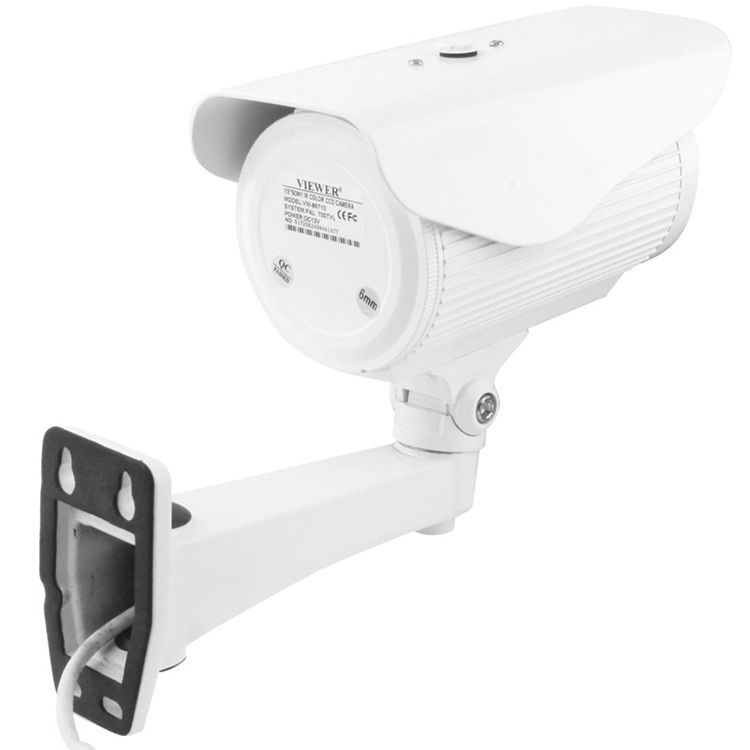

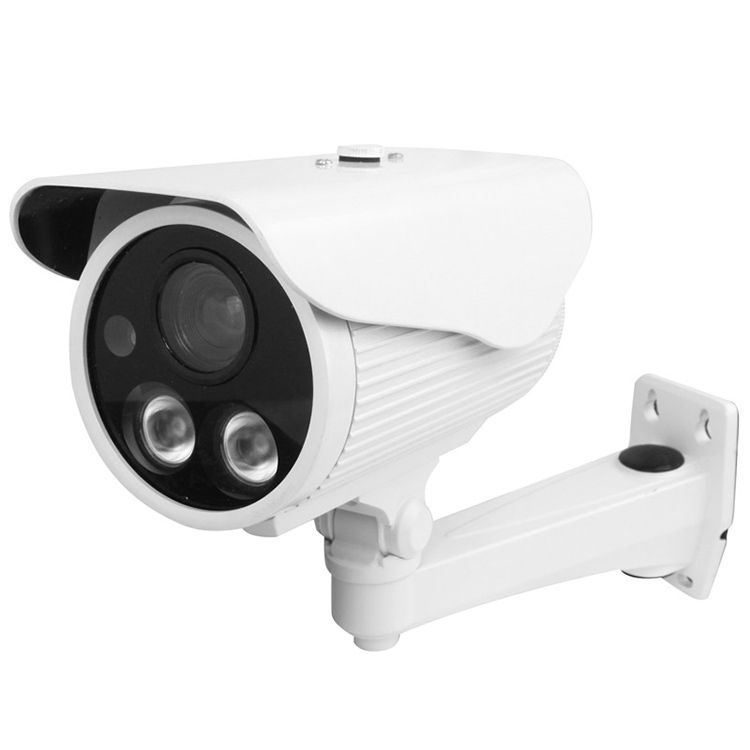

1 / 3 inch Sony 700TVL 6mm Fixed Lens Array LED & Waterproof Color CCD Video Camera with Bracket, Support OSD Control, IR Distance: 50m


R2095

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Features:
1. Adapt high performance CCD image sensor
2. High resolution and clear image
3. Low illumination, 0-lux with IR day and night, full day surveillance
4. Support backlight compensation supports auto white balance
5. High SNR, image clean, slightly supports auto digital shutter
6. Supports auto digital gain
Specifications:
1. Shows superior image effects
2. Housing is made of special material
3. Waterproof up to IP65 level
4.The fourth generation of IR array illumination, which can improve the photoelectric conversion efficiency
5. The IR LED lifespan is more than five years and night vision has an effective result
6. Uses accurate constant current source technology
7. LED board is designed separately from the control circuit board, to make it more stable
8. High-power lighting protection circuit, to make the CCD board more stable
9. Image sensor: Sony CCD
10. Scanning systems: PAL/NTSC
11. Synchronized system: internal
12. Illumination: 0.001 lux F1.2/0 lux (IR on)
13. Lens: 1 lux F1.4/0 lux 8/12/16mm optional
14. IR distance range: 0 to 50m
15. IR LED: 6pcs array high-power IR
16. WBC: 1/50 to 1/100,000sec automatic
17. AG: AGC
18. S/N ratio: Above or less 48dB
19. Exposure time: Automatic
20. Auto iris: Electronic shutter
21. Mirror function: on/off (optional)
22. BLC: on/off optional
23. Video output: 1.0Vp-p/75ohm
24. Gamma correction: 0.45
25. Working temperatures: -20 to 50 degree C
26. Working humidity: 85% RH
27. Power supply: DC 12V
28. Case Material: Aluminum Alloy

Additional Information

General

Power Supply: DC 12V
Performance: Night Vision

System / Hardware

Signal System: PAL, NTSC
Lens: 6.0mm
Electronic Shutter:
SNR: >=48dB
Minimum Illumination: 0 Lux (IR on), Color: 0.001Lux@F1.2

Media Format

Horizontal Resolution: 700TVL
Video Output: 1.0Vp-p/75ohm

Night Vision

Infrared Distance: 50m
Configuration: 6 infrared LEDs

Physical Environment

Environment: Outdoor, Indoor
Ingress Protection: IP65
Operate Temperature: -20 to 50 Degree Celsius
Working Humidity: Less than 85 percent

Dimensions

Size: Without bracket 185(L) x 90(W) x 85(H) mm
Weight: 1020g

Package Include

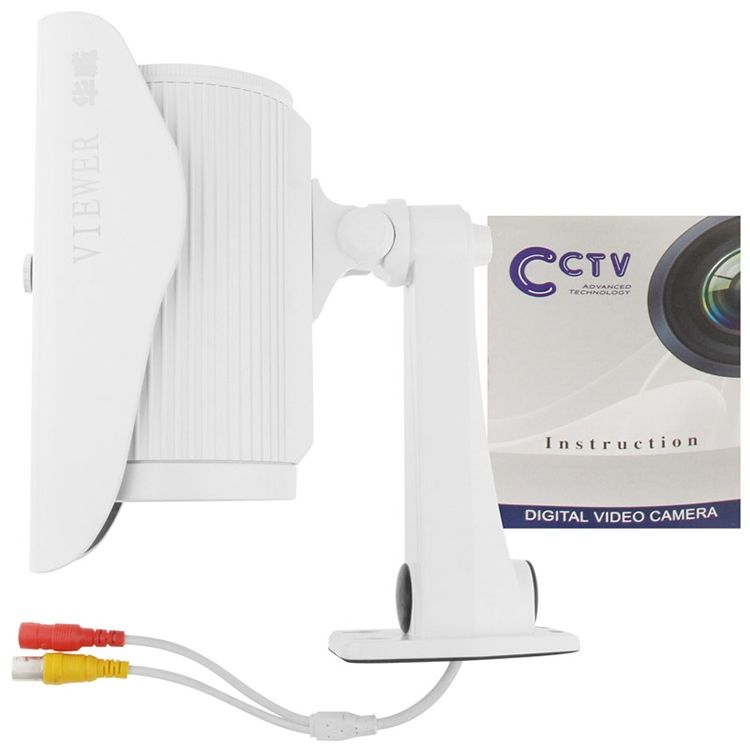

Package Contents: 1 x Camera, 1 x User Manual

Weight & Size

Weight: 1.485kg
Size: 27cm x 23cm x 12cm

SKU: C0100009890 Category: Condition: New
