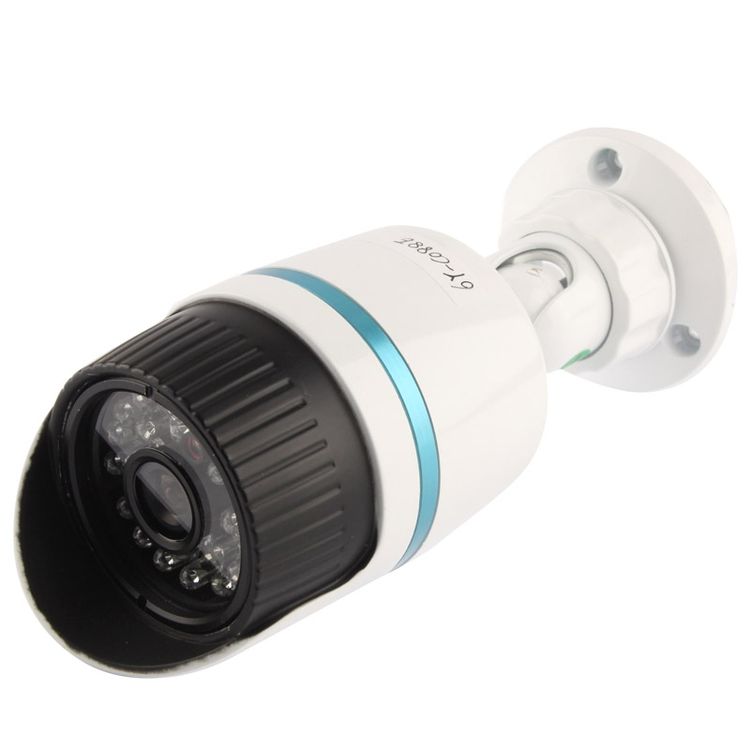

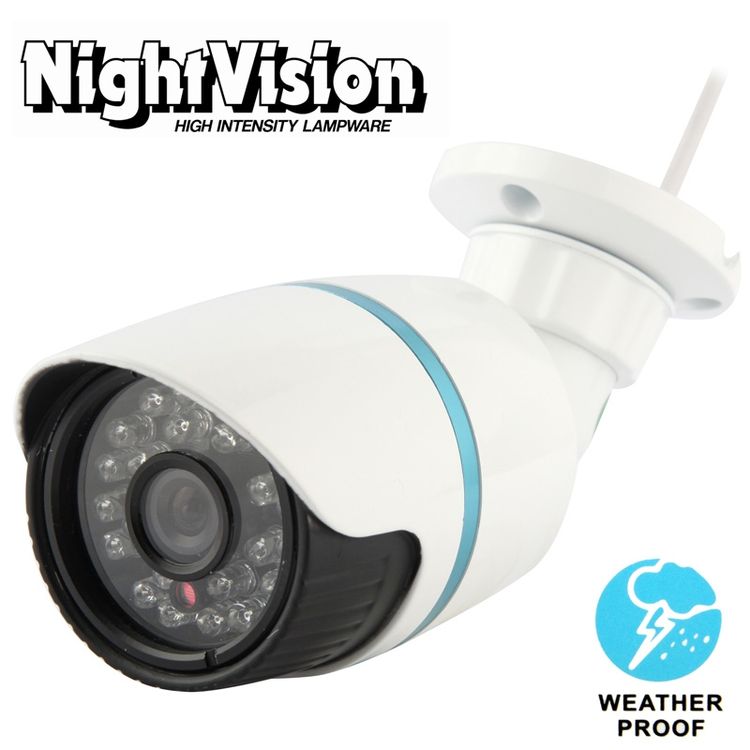

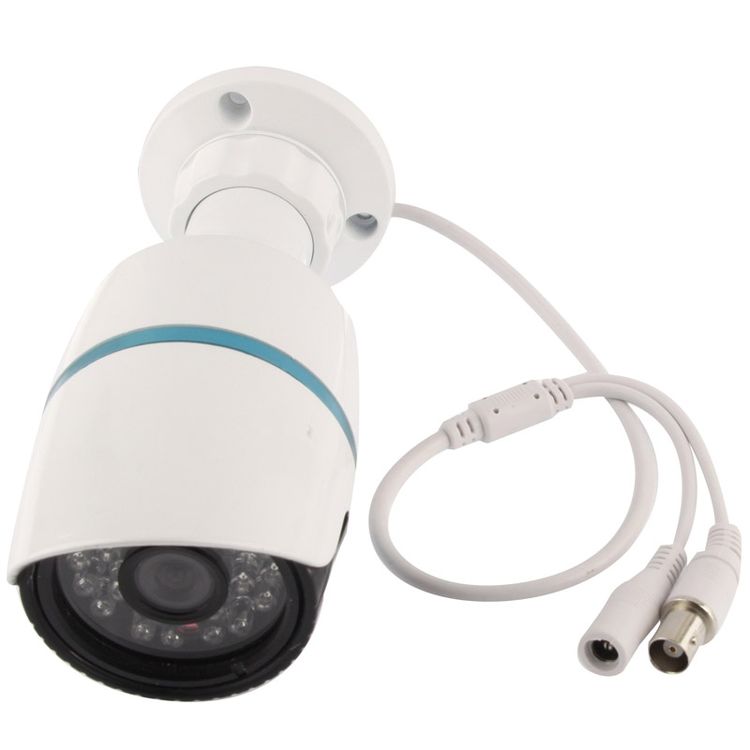

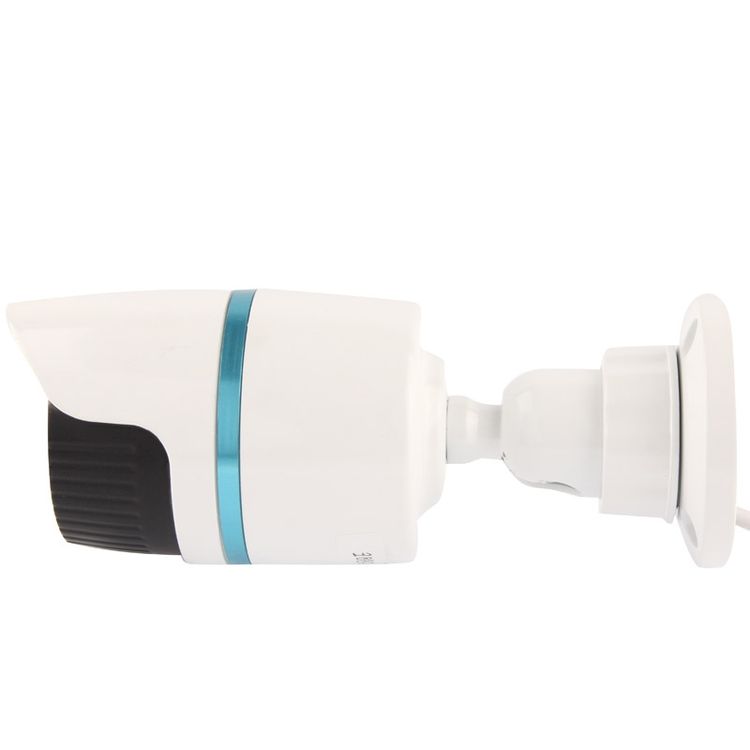

1 / 3 inch COMS 3089 700TVL 8mm Fixed Lens IR LED & Waterproof Color Box CCD Video Camera, IR Distance: 25m (6Y-C088E)


R1305

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products or have a look at these Closely Matched Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

Video:
1) Imaging Sensor: 1/3 inch COMS Super HADⅡCCD
2) Scanning System: 2:1 Interlace
3) Total Pixel:
– PAL: 512H x 582V
– NTSC: 512H x 492V
4) Horizontal Resolution: 3089 700TVL
5) Minimum Illumination: 0lux IR ON
6) S/N Ration: ≥ 52dB
7) Video Output: CVBS: 1.0Vp-p/75Ω Composite
8) Correction: 0.45
9) Frequency
– H: 15.734KHz
– V: 15.625KHz
– V: HZ
10) Sync. System: Internal Synchronization
11) Day & Night: Auto Color to B/W
12) Electronic Shutter Speed: 1/50-1/10,000s
Operational:
1) White Balance: ATW
2) BLC: AUTO
3) AGC: Auto/Manual
Lens:
1) 24 IR LED
2) IR Distance: 25m
3) Lens Type: 8mm Fixed Lens (Standard)
4) Mount Type: CS
Electrical:
1) Power Supply: DC12V±5﹪
2) Power Consumption: ≤6W
Environmental:
1) Work Consumption: ≤85%RH
2) Operation Temperature: 20℃— -50℃
Physical:
1) Case Material: Aluminum Alloy (Water Resistant IP66)
2) Camera Dimensions: Size: 170mm x 65mm x 65mm
3) Net Weight: 303g

Additional Information

Weight & Size

Weight: 1.303kg
Size: 21cm x 11cm x 9cm

SKU: C0100016953 Category: Tag: Condition: New
