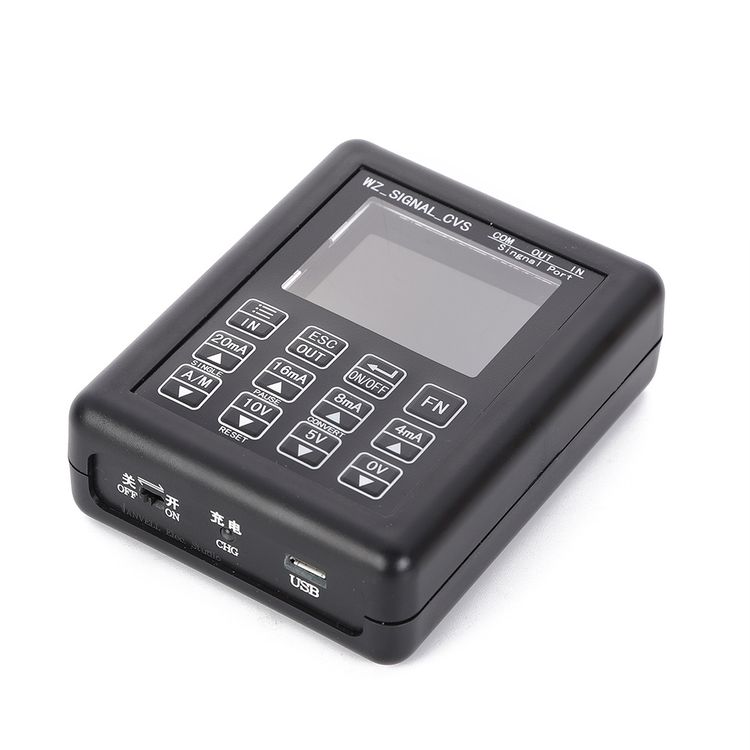

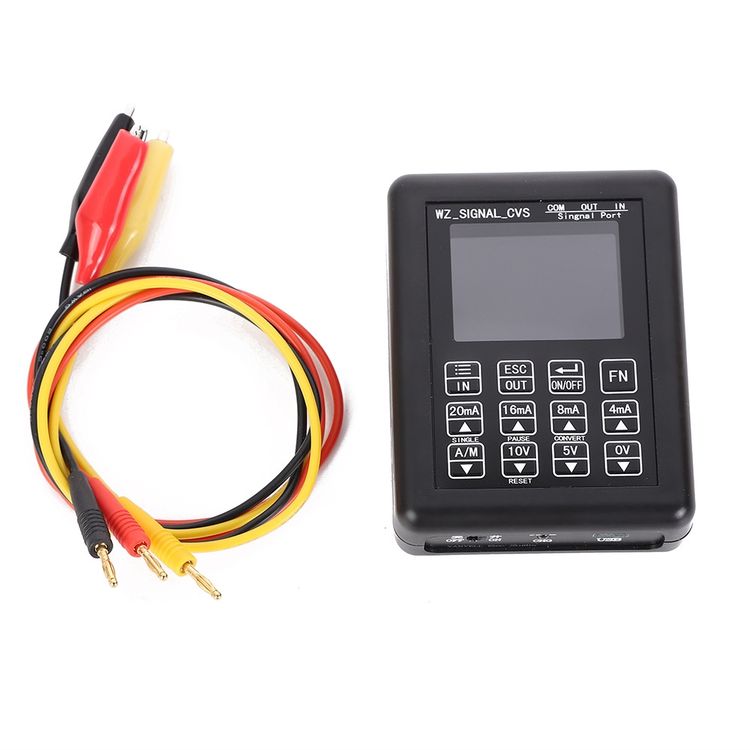

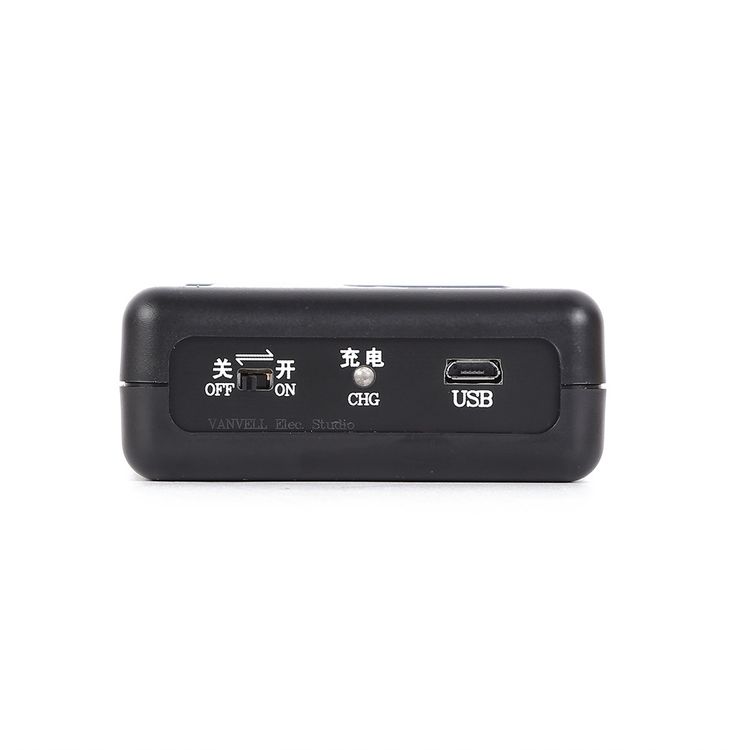

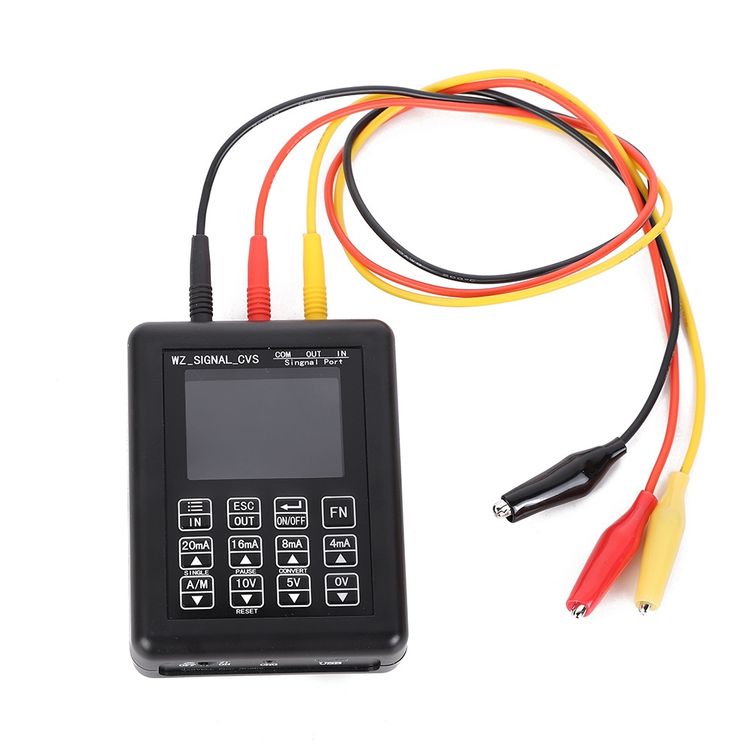

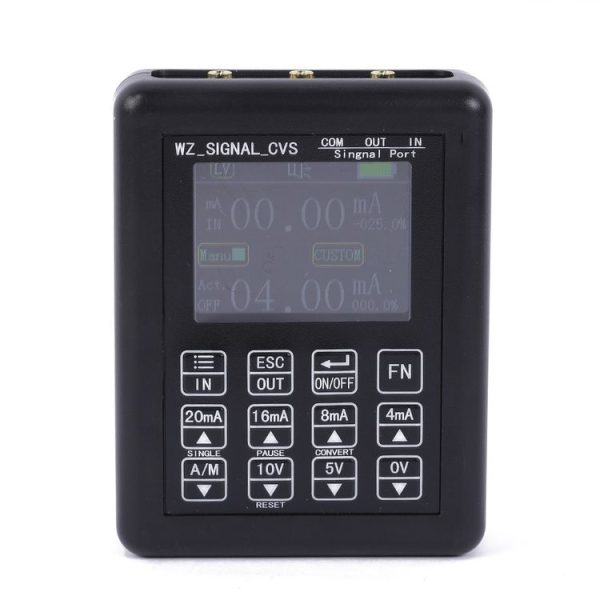

0-10V 4-20mA Signal Generator Adjustable Current Voltage Analog Simulator


R1030

In Stock at Supplier

iKhokhaYocoVisaMastercardAmerican ExpressApple PayInstant EFTEFT
Didn't find what you're looking for?
Take a look at these Similar Products
Got questions or need assistance?
Please take a look at our Frequently Asked Questions or Contact Us

Overview

1. Active current output: Range: 0-24mA; Resolution: 0.01mA; Load (max): 750 ohms
2. Passive current output: Range: 0-24mA; Resolution: 0.01mA; External power supply up to 30V.
3. Voltage output range: 0-12V; Resolution: 0.01V; Current (max) 30mA
4. 24V voltage output: drive current: 24mA.
5. Current input measurement: Range: 0-24mA; Resolution: 0.01mA; Input impedance: 100Ω
6. Voltage input measurement: Range: 0-30V; Resolution: 0.01V; Input impedance: 2.5MΩ
7. Working environment: 0-50 degrees Celsius
8. Protection voltage: 30V
9. Product size: 90 x 70 x 28mm

Additional Information

Weight & Size

Weight: 0.124kg
Size: 15cm x 10cm x 8cm

SKU: A0100002949 Category: Condition: New
